Canon EOS 5D Mark IV teardown by LensRentals

All pictures © LensRentals and used with permission.

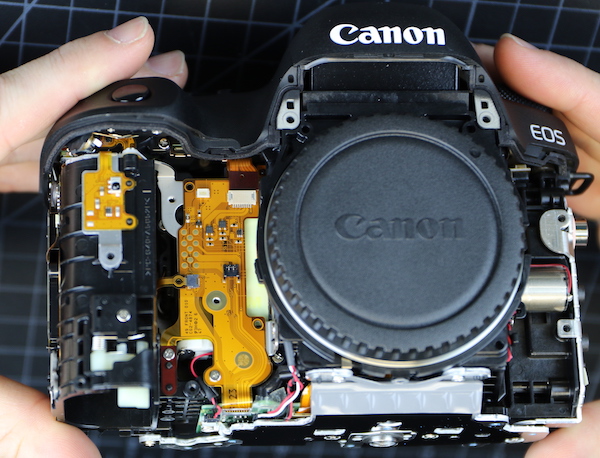

LensRental’s Roger Cicala and Aaron Closz did it again. They completely disassembled the brand new Canon EOS 5D Mark IV.

They write:

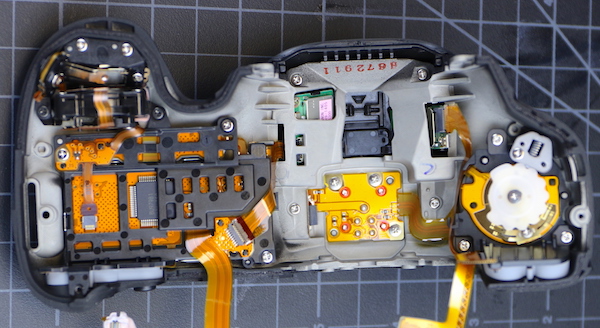

The weather sealing on the Canon 5d Mark IV appears pretty robust […]  The shell of the camera has an interlocking construction with lots of pins and clips and more screws than previous Canon cameras. This makes it kind of a pain to get into, but I’m sure it adds to the shell’s overall strength. It might make it more weather resistant if the parts are held together more tightly […].

There are more chips, and more and heavier connectors moving electrons from board to board than even the Canon 5Ds cameras have. This kind of makes sense because there’s lots of new stuff in here: a touch screen LCD, dual-pixel technology, WiFi, GPS, the list goes on. […]  There are some empty spaces that aren’t packed full of electronics. In other words, this camera probably could have been a bit smaller but Canon wanted to keep the form factor the same.

There is much more in the original article, along with a huge set of picture documenting the teardown step by step. Read the article at LensRentals…

You can rent the Canon EOS 5D Mark IV at LensRentals.
