Canon patent for new Cine lenses (CN-E 18-85mm f/2.8)

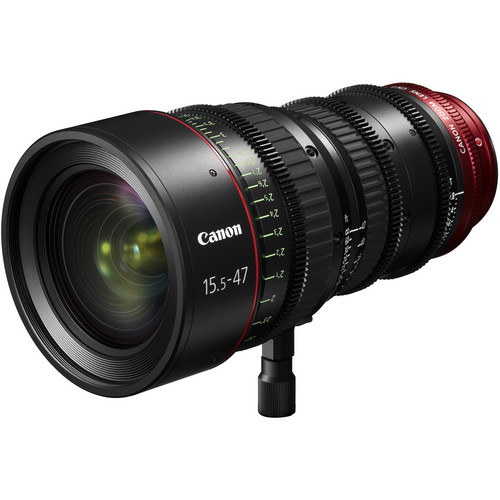

Another Canon patent. This time we have a patent for a new Cine lens, CN-E 18-85mm f/2.8. The patent for the 18-85mm seems to share the same optical formula as the already released CN-E 15.5-47mm f/2.8 lens.

• Patent Publication No. 2015-4917
  • Published 2015.1.8
  • Filing date 2013.6.24

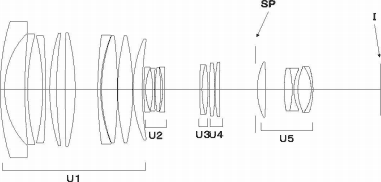

• Example 1
  • Zoom ratio 2.80
  • Focal length 16.00 29.68 44.80
  • F number 2.80
  • Half angle (in degrees) 43.15 26.81 18.51
  • Image height 15.00
  • Overall length of the lens 263.54
  • BF 39.04
• Example 2
  • Zoom ratio 4.50
  • Focal length 18.50 45.61 83.25
  • F number 2.80
  • Half angle (in degrees) 39.04 18.20 10.21
  • Image height 15.00
  • Lens length 263.78 263.78 263.78
  • BF 46.93 46.93 46.93
• Canon patents
  • 5-group zoom of positive and negative negative-positive-positive
  • Inner focus (part of the first group)
  • Inner zoom
