Canon EOS-1D X Mark II product description text and full specs leaked

eos-1d x mark ii

The product presentation text for the Canon EOS-1D X Mark II (to be announced today) has leaked on the site of an online retailer (thanks Rick).

Immense power. Phenomenal speed. A remarkable combination of innovation and refinement.

The new EOS-1D X Mark II camera is nothing but legendary every step of the way. Building on a heritage of sophisticated innovation, the EOS-1D X Mark II is blazingly fast. Up to 14 fps*(up to 16 fps* in Live View mode) can be captured at a burst rate of up to 170 RAWs with a CFast™ card, and an improved 61-point AF system helps deliver clean, sharp images quickly, even in dim light. This remarkable speed means faster recording too: 4K video can be recorded at up to 60 fps with smooth AF and strikingly clear detail. Combined with superb low-light performance thanks to its powerful sensor and expandable ISO range, the EOS-1D X Mark II performs brilliantly, swiftly and stunningly no matter when or where the photographer is shooting. From the stadium, safari or studio to virtually everywhere in between, the EOS-1D X Mark II maintains and enhances all the hallmarks of what Canon has to offer, marking a new page in the legacy of the EOS series of cameras.

  • Fastest shooting EOS-1D, capable of up to 14 fps* full-resolution RAW or JPEG, and up to 16 fps* in Live View mode with new Dual DIGIC 6+ Image Processors.
  • Achieves a maximum burst rate of up to 170 RAWs in continuous shooting at up to 16 fps, and 4K movies using CFast™ cards in the new CFast 2.0™** slot.
  • Experience less noise in higher ISO images via a new 20.2 Megapixel full-frame CMOS sensor, with an ISO range of 100–51200; expansion to ISO 409600.
  • Improved AF performance through 61-point High Density Reticular AF II system with 41 cross-type points, improved center point focusing sensitivity to -3 EV and compatibility down to f/8***.
  • Accurate subject tracking for stills and video with new EOS Intelligent Tracking and Recognition AF with 360,000-pixel metering sensor.
  • 4K video (4096 x 2160) up to 60 fps (59.94), with an 8.8-Megapixel still frame grab**** in camera. Full 1080p HD capture up to 120 fps for slow motion.
  • Dual Pixel CMOS AF & Movie Servo AF for high speed, high frame rate and continuous autofocus during video shooting.
  • View and control high quality stills and videos via the 3.2-inch touch panel LCD with 1.62 million dots.
  • Increased resolution and fine detail, with lens aberration correction and diffraction correction via new in-camera Digital Lens Optimizer technology.
  • Built-in GPS***** provides geotag information including auto time syncing with Universal Time Code via satellites.
  • The new optional Wireless File Transmitter WFT-E8A is compatible with IEEE 802.11ac/n/a/g/b, supporting both the 2.4 GHz and 5 GHz Wi-Fi® bands.
  • Durable and rugged magnesium alloy body with dust- and-weather resistance for demanding shooting situations.

* Continuous shooting speed may vary depending on the shutter speed, the aperture, the lens being used, the battery charge and various camera settings.

More after the break



Fastest shooting EOS-1D, capable of up to 14 fps* full-resolution RAW or JPEG, and up to 16 fps* in Live View mode with new Dual DIGIC 6+ Image Processors.

Up to 14 fps* Full-resolution RAW or JPEG, Up to 16 fps* in Live View Mode
Delivering outstanding performance at speeds of up to 14 fps*, and up to 16 fps* in Live View, the EOS-1D X Mark II camera is loaded with technologies that help facilitate speedy operation at every step of image capture. The EOS-1D X Mark II features a new mirror mechanism designed for highly precise operation with reduced vibration even at incredibly fast speeds. The shutter unit is rated for 400,000 frames and captures at up to 16 fps*, while the CMOS sensor has high-speed signal reading that enables speedy image capture. A fast AF/AE system, Dual DIGIC 6+ Image Processors and high-speed recording with its new CFast™card slothelps ensure that camera operations are performed quickly and precisely.

Dual DIGIC 6+ Image Processors
Key to the performance benchmarks achieved by the EOS-1D X Mark II camera, Dual DIGIC 6+ Image Processors not only convert the light that passes through the camera’s sensor into high-quality photos and movies, but also enhance the camera’s overall performance. Improvements include high-speed processing, up to 16-fps* operation for stills and 4K/60p movies, lens distortion and diffraction correction during operation with virtually no effect on the camera’s speed, plus fast write times and much more.
* Continuous shooting speed may vary depending on the shutter speed, the aperture, the lens being used, the battery charge and various camera settings.

Achieves a maximum burst rate of up to 170 RAWs in continuous shooting at up to 16 fps, and 4K movies using CFast cards in the new CFast 2.0** slot.

The EOS-1D X Mark IIcamera can capture an incredible amount of images and movies with amazing speed. When recording to CFast 2.0™* cards through its new CFast™ card slot, the EOS-1D X Mark II can record up to 170 full-size RAW files, and JPEGs up to full card capacity at 16 fps. 4K/60p and Full HD/120p video can also be recorded with virtually no restriction, and with exFAT format support, movie files of larger than 4GB can be recorded without the need to merge files. Performance with CF cards through the camera’s CF card slot is impressive as well: the EOS-1D X Mark II can capture up to 73 full-size RAW files and JPEGs up to full card capacity when recording to CF UDMA7 media.

As of February 2016, compatibility has been verified for the following CFast™ memory cards:

Proper operation cannot be guaranteed for all recording media. Long-term usage may reduce a CFast™ card’s write speed. We recommend users regularly fully format and refresh their card using the “Full Format and Refresh Tool.”

* Canon is an authorized licensee of the CFast 2.0™ trademark, which may be registered in various jurisdictions.

Experience less noise in higher ISO images via a new 20.2 Megapixel full-frame CMOS sensor, with an ISO range of 100–51200; expansion to ISO 409600.

20.2 Megapixel Full-Frame CMOS Sensor
The EOS-1D X Mark IIcamera features a Canon-developed 20.2 Megapixel full-frame CMOS sensor that not only helps it record more pixels, but also includes gapless micro lenses for enhanced low-light performance. This results in noise reduction in dark portions of the image even at high ISO speeds, and increased sensitivity that contributes to the EOS-1D X Mark II’s high-speed image capture rate, accelerating frame-to-frame performance as well as enabling 4K movies (60p/30p) and improved playback. The new sensor is also Canon’s first full-frame sensor to include Dual Pixel CMOS AF for high-speed, precise AF during Live View still and movie recording.
ISO Range of 100–51200; Expansion to ISO 409600
The EOS-1D X Mark IIcamera delivers high standard and expanded ISOs, and a score of options to enhance shooting in varied and fast-changing lighting situations. With a standard range of ISO 100–51200, the EOS-1D X Mark IIis incredibly sensitive, and thanks to a high signal-to-noise ratio as well as powerful noise reduction, the EOS-1D X Mark II can shoot at expanded sensitivities down to ISO 50 (L) and up to 102400 (H1), 204800 (H2) and even 409600 (H3)! Beyond the obvious advantages of its wide ISO range, the EOS-1D X Mark II has automatic ISO settings, found on the dedicated ISO menu. Minimum and maximum ISO settings can be specified, as can a user-defined range, plus full auto and manual.

Improved AF performance through 61-point High Density Reticular AF II system with 41 cross-type points, improved center point focusing sensitivity to -3 EV and compatibility down to f/8***.
Improved AF Performance
The EOS-1D X Mark IIcamera incorporates a number of significant improvements to help deliver highly precise, reliable AF and AF tracking, both faster and available in more situations. It features a new 61-point High Density Reticular AF II system with 41 cross-type points that expands the AF area approximately 8.6% in the top and bottom of the central AF area, and approximately 24% at the top and bottom of the peripheral frame. A wider subject tracking area improves the AF system so that challenging focus tracking in scenes with sudden changes of speed and subject position is easier than ever. The AF system’s low-intensity limit has been improved to EV-3 and all 61 AF points are compatible down to f/8* for excellent low-light performance. The EOS-1D X Mark II’s AF algorithm has also been improved: it’s equipped with AI Servo AF III+, which remembers the AF path and helps refine precision. Whether choosing individual AF points manually, using the Large Zone AF area or any of the camera’s automatic AF selection modes, the EOS-1D X Mark II is designed to exceed users’ expectations for high-precision AF.

Improved Intelligent Viewfinder with Enhanced Visibility for AF Point Display
The EOS-1D X Mark IIcamera features a new Intelligent Viewfinder II for convenient composition and setting changes without taking an eye off the subject at hand. The camera’s viewfinder can show significantly more information in the LCD display and presents AF points in red, increasing visibility in dark locations where AF is typically difficult and in situations where the ambient light makes the AF frame difficult to see. Features like the electronic level, a grid, flicker detection, white balance, metering mode, AF information and more can be glanced at easily without drawing attention away from the subject.

* Except when using the Canon EF 50mm f/2.5 Macro, EF 100mm f/2.8 Macro, EF 100mm f/2.8 Macro USM, EF 100mm f/2.8L Macro IS USM and EF 28-80mm f/2.8-4L USM lenses.

Accurate subject tracking for stills and video with new EOS Intelligent Tracking and Recognition AF with 360,000-pixel metering sensor.

The EOS-1D X Mark II camera has an amazingly advanced 360,000-pixel RGB+IR metering sensor and processor that greatly contribute to the camera’s impressive AF performance for both stills and video. Thanks to a high resolution and infrared sensitivity combined with a refined detection algorithm, this new sensor improves the color and shape recognition of the EOS-1D X Mark II’s iSA (Intelligent Subject Analysis) system, increasing the camera’s ability to recognize subjects for faster, more precise AF, metering and exposure compensation. This additional exposure and subject information also helps the EOS-1D X Mark II’s iTR (Intelligent Tracking and Recognition) AF system maintain focus on a moving subject with a greater level of consistency.

4K video (4096 x 2160) up to 60 fps (59.94), with an 8.8-Megapixel still frame grab**** in camera. Full 1080p HD capture up to 120 fps for slow motion.

The EOS-1D X Mark II is an incredibly capable camera for moviemaking. Thanks to its Dual DIGIC 6+ Image Processors and its advanced sensor, it can capture huge 4K (Motion JPEG)video at up to 60 fps, recording smoothly to CFast™ cards. It’s the first EOS camera able to record Full HD video at 120 fps, easily displaying minute details imperceptible to the human eyeand ideal for slow-motion video capture. With the camera’s new touch panel display, AF points can be easily selected while the camera’s rolling, and focus can be quickly confirmed with the EOS-1D X Mark II’s 4K still frame grab feature*, wherein an 8.8-Megapixel still image can be selected for review and saved. Low-light performance is improved as well, with video recording at ISOs of up to 12800 in 4K and 25600 in Full HD.The EOS-1D X Mark II also features uncompressed HDMI output for Full HD videos, helping to facilitate video editing with minimal image degradation. Not to mention, it can also save videos as MP4s for easy playback on mobile devices.

* Saving a still image from a single movie frame does not result in the same image quality as a normal still image.

Dual Pixel CMOS AF & Movie Servo AF for high speed, high frame rate and continuous autofocus during video shooting.

With significant improvements in AF operation, the EOS-1D X Mark IIcamera can be an indispensible and remarkably portable moviemaking tool. Continuous AF, even during 4K recording, is made easy thanks to the EOS-1D X Mark II’s Dual Pixel CMOS AF, which is compatible with all Canon EF lenses. Focus points can be selected automatically, or specified on the camera’s new touch panel LCD screen. Critical focus throughout the frame can be easily confirmed by enlarging stills grabbed from video recordings. The EOS-1D X Mark II’s Movie Servo AF is compatible with all frame rates and resolutions, and can be customized to set tracking sensitivity, AF speed and even Face Tracking priority. These advanced features help make the EOS-1D X Mark II a truly versatile and convenient camera for 4K and Full HD moviemaking.

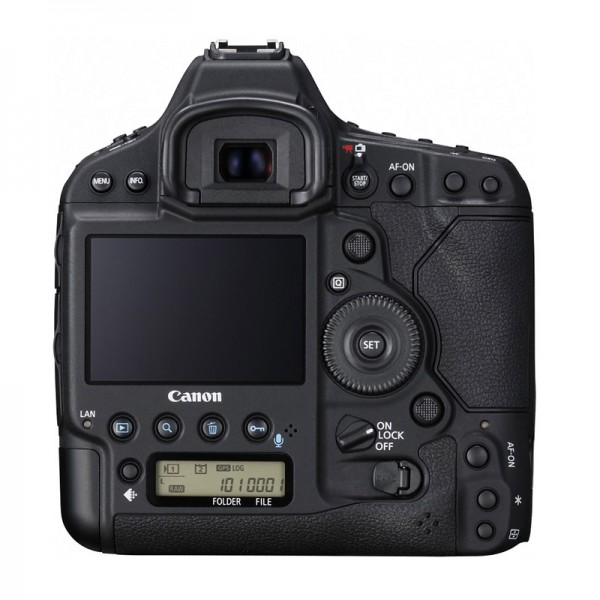

View and control high quality stills and videos via the 3.2-inch touch panel LCD with 1.62 million dots.

The EOS-1D X Mark II camera’s 3.2-inchtouch panel TFT LCD monitor has approximately 1.62 million dots, anti-reflective construction and features Canon’s Clear View LCD II technology for bright, sharp display in any number of shooting situations. Its new touchscreen function allows AF point switching and image magnification during Live View shooting and movie shooting, providing convenient operation. The LCD monitor can be ideal for reviewing settings and images, as well as for shooting in Live View mode. In Live View, grid lines can be displayed in 9 sections, 24 sections or 9 sections with diagonals, as well as the dual-axis electronic level, which helps ensure accurate level by displaying both roll and pitch in 1-degree increments. For image review, the EOS-1D X Mark II has a dedicated Magnify/Reduce button. While pressing the button, zooming in or out (up to 10x) is achieved simply by turning the Main Dial. Images can be protected or erased quickly, individually or in batches, and slideshows can be created with some or all images and can be sequenced by date, folders, movies, stills,protection or rating. A feature guide can be accessed for the selected menu, providing detailed reference information when needed.

Increased resolution and fine detail, with lens aberration correction and diffraction correction via new in-camera Digital Lens Optimizer technology.

To combat any possible image degradation from lens aberration and diffraction, the EOS-1D X Mark II camera is equipped with a number of in-camera optical correction functions for clear and high-quality images. The EOS-1D X Mark II even stores lens aberration data, helping to eliminatethe need to register lens data on previously released lenses, and correcting images with virtually no delay in-camera. The EOS-1D X Mark II not only corrects peripheral brightness and chromatic aberration, but also features distortion correction plus diffraction correction, which has been included for the first time in an EOS camera. Distortion correction helps resolve barrel and pincushion distortions,while diffraction correction virtually eliminates the blurring effects from diffraction that can be created when capturing an image at a small aperture. The camera’s Dual DIGIC 6+ Image Processors help ensure these corrections can be made with virtually no effect on operational speed. In-camera RAW processing is also made fast and convenient with Canon’s Digital Lens Optimizer, helping to improve image quality and giving photographers the ability to work confidently in more complex environments.

Built-in GPS***** provides geotag information including auto time syncing with Universal Time Code via satellites.

Providing crucial location and time data, GPS has become an indispensible aspect of the professional workflow, especially for professionals who work on location and capture thousands of images each day. The EOS-1D X Mark IIcamera has GPS* built in, helping photographers and filmmakers not only tag their images with critical location data, but also adjust the time and timestamp on the camera automatically. Thanks to built-in GPS*, and Wi-Fi® connectivity throughthe optionalWireless File Transmitter WFT-E8A accessory, the EOS-1D X Mark II can use both GPS andWFT (Wireless File Transfer)together, making it easy to upload a great amount of images both quickly and from increasingly far-flung locales. Offering compatibility with American GPS satellites, Russian GLONASS satellites and Japanese quasi-zenith satellites Michibiki, the EOS-1D X Mark II’s GPS information is reliably accurate virtually anywhere you go.

* In certain countries and regions, the use of GPS may be restricted. Therefore be sure to use GPS in accordance with the laws and regulations of your country or region. Be particularly careful when traveling outside your home country. As a signal is received from GPS satellites, take sufficient measures when using in locations where the use of electronics is regulated.

The new optional Wireless File Transmitter WFT-E8A is compatible with IEEE 802.11ac/n/a/g/b, supporting both the 2.4 GHz and 5 GHz Wi-Fi® bands.

The Wireless File Transmitter WFT-E8A, the EOS-1D X Mark II camera’s new optional accessory, provides both a fastthroughput for image uploading andseveral new features that make dynamic wireless photography simple and fast. It has 5GHz 802.11ac support for high-speed image transfer, a revamped user interface that enables speedy set-up and configuration of wireless networks and even compatible smartphone connection.Accommodating both iOS* and Android** devices, the Wireless File Transmitter WFT-E8A makes it simple to use a smartphone as a remote control for still and video capture. It can even transfer recorded images back for viewing on the device’s screen. The Wireless File Transmitter WFT-E8A is both compact and durable, with excellent dust- and water- resistance for unfettered operation in difficult environments.
* Compatible with iOS versions 7.1/8.4/9.0, Android smartphone and tablet versions 4.0/4.1/4.2/4.3/4.4/5.0/5.1. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social media services. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app.

** Compatible with Android smartphone and tablet versions 4.0/4.1/4.2/4.3/4.4/5.0/5.1.

Durable and rugged magnesium alloy body with dust- and-weather resistance for demanding shooting situations.

For professionals who demand nothing less than the best, the EOS-1D X Mark IIcamera is designed to perform superbly even in the most treacherous environments, every time. The body is constructed of rigid, high-strength magnesium alloy for rugged performance and features a grip design for easy finger placement and reduced hand fatigue. Its shutter has lightweight, carbon-fiber blades, and is rated to maintain up to 16 fps performance without compromise, for up to 400,000 cycles. The EOS-1D X Mark II and accessories like the new Wireless File Transmitter WFT-E8A have extensive gasketing for improved dust and water resistance, even at their connection points.

What’s in the box:

  • EOS-1D X Mark II Camera Body
  • Battery Pack LP-E19
  • Battery Charger LC-E19
  • Wide Strap
  • Eyecup Eg (Not shown)

Type

Type Digital, AF/AE single-lens reflex camera
Recording Media CF Card (Type I; compatible with UDMA 7 CF cards) and CFast™ Card (CFast 2.0™ supported)
Image Format Approx. 36mm x 24mm (35mm Full-frame)
Compatible Lenses Canon EF Lenses (excluding EF-S and EF-M lenses)
Lens Mount Canon EF Mount

Image Sensor

Type High-sensitivity, high-resolution, large single-plate full-frame CMOS sensor
Effective Pixels Approx. 20.2 megapixels
Total Pixels Approx. 21.5 megapixels
Aspect Ratio 3:2 (Horizontal: Vertical)
Color Filter System RGB primary color filters
Low Pass Filter Fixed position in front of the image sensor
Dust Deletion Feature
  • Self Cleaning Sensor Unit
  • Self-cleaning can be done automatically when the power is turned on/off.
  • During manual cleaning ([Clean now]), the data for light spot correction is also obtained.
  • Dust Delete Data acquisition and appending
  • The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
  • The dust coordinate data appended to the image is used by the EOS software to automatically erase the dust spots.
  • Manual cleaning

Recording System

Recording Format Design Rule for Camera File System 2.0 and EXIF 2.3
Image Format Still Image: JPEG, RAW (14 bit Canon Original), M-RAW, S-RAW, RAW+JPEG, M-RAW+JPEG, S-RAW+JPEG Video: MOV (4K Movie: Motion JPEG, Full HD Movie: MPEG4 AVC/H.264*; Audio: Linear PCM), MP4 (Movie: MPEG4 AVC/H.264*; Audio: AAC)
* Variable (averaged) bit rate
File Size
  • Large: Approx. 20.0 Megapixels (5472 x 3648)
  • M1: Approx. 12.7 Megapixels (4368 x 2912)
  • M2: Approx. 8.9 Megapixels (3648 x 2432)
  • Small: Approx. 5.0 Megapixels (2736 x 1824)
  • RAW: Approx. 20.0 Megapixels (5472 x 3648)
  • M-RAW: Approx. 11.2 Megapixels (4104 x 2736)
  • S-RAW: Approx. 5.0 Megapixels (2736 x 1824)

Exact file sizes depend on the subject, ISO speed, Picture Style, etc.

Recording Functions
  • Standard
    • Recorded to the selected card.
  • Auto switch card
    • When the current card becomes full, the camera switches to the other card automatically.
  • Record separately
    • The CF card and CFast™ card record the same image at a different image recording quality (L, M1, M2, S, RAW, M-RAW, S-RAW).
  • Record to multiple
    • Both the CF card and CFast™ card record the same image at the same image recording quality (Also applies to RAW+JPEG).
Backup Recording N/A
File Numbering The following three types of file numbers can be set:

  • Continuous numbering
    • The numbering of captured images continues even after you replace the card.
  • Auto reset
    • When you replace the card, the numbering will be reset to start from 0001. If the new card already contains images, the numbering will continue from the last recorded image in the card.
  • Manual reset
  • Resets the file number to 0001, and creates a new folder automatically.
RAW + JPEG Simultaneous Recording One of three types of RAW images and one of four types of JPEG images can be recorded together.
Color Space sRGB, Adobe RGB
Picture Style Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined 1–3*
* [Standard] is the default setting for [User Def. 1–3]

White Balance

Settings Auto (Ambience priority/White priority), Daylight, Shade, Cloudy*1, Tungsten Light, White Fluorescent Light, Flash, Custom (Custom WB) 1–5*2, Color Temperature, PC-1–5*3 (Personal WB) *1 Also effective in twilight and sunset.
*2 [Select image on card], [Record and register WB] and [Edit WB name] can be used.
*3 Up to five white balance data settings set with EOS Utility.
Auto White Balance Option between ambience priority and white priority settings
Color Temperature Compensation Blue/amber bias: ±9 levels
Magenta/green bias: ±9 levels Corrected in reference to the current WB mode’s color temperature.
Color Temperature Information Transmission Provided

Viewfinder

Type Eye-level pentaprism
Coverage Approx. 100% vertically and horizontally
Magnification Approx. 0.76x (-1m-1 with 50mm lens at infinity) / 35.1° angle of view
Eye Point Approx. 20mm (at -1m-1 from eyepiece lens center)
Dioptric Adjustment Correction –3.0 to +1.0 m–1 (diopter)
Focusing Screen Ec-C6 provided, can be changed to Ec-A, B or L
Mirror Quick-return half mirror
Viewfinder Information
  • AF area selection mode
  • AF point information
  • Area AF frame
  • Spot metering circle
  • Electronic level (dedicated indicator)*
  • Grid*
  • Shooting mode*
  • Metering mode*
  • White balance*
  • Drive mode*
  • AF operation*
  • Flicker detection*
  • Warning symbol
  • AF status indicator

* Asterisked items can be displayed or not with [Show/hide in viewfinder].

Depth Of Field Preview Provided

Autofocus

Type TTL secondary image-forming phase-difference detection system with AF-dedicated CMOS sensor
AF Points (Optical AF) Max. 61 points (Cross-type AF points: Max. 41 points)
61-point High Density Reticular AF II
(AF Points and AF Patterns)
Number of AF Points (Max.)
Dual Cross-type AF Points at f/2.8 and f/5.6 5
Cross-type AF Points at f/4.0+f/5.6 20
Cross-type AF Points at f/5.6 21
Horizontal-line Sensitive AF Points at f/5.6 20
Focusing at f/8 61
(Cross-type AF Point: 21)
The number of AF points, cross-type AF points and dual cross-type AF points vary depending on the lens used.
Focusing Modes
  • Autofocus
  • One-Shot AF
  • Predictive AI Servo AF (AI Servo AF III+)
  • Manual focus
AF Point Selection
  • Single-point Spot AF (Manual selection)
  • Single-point AF (Manual selection)
  • The checkmark cannot be removed from this option.
  • AF point expansion (Manual selection, 4 points: Up, down, left and right)
  • AF point expansion (Manual selection, surrounding 8 points)
  • Zone AF (Manual zone selection)
  • All AF points divided into nine focusing zones.
  • Large Zone AF (Manual zone selection)
  • All AF points divided into three focusing zones.
  • AF point Auto selection AF
AF Function Registration/Switching Customizable with Custom Controls
Selected AF Point Display Superimposed display
Active AF Point Indicator
  • Displayed in viewfinder area
  • Displayed outside viewfinder area
AF Assist Beam When an external EOS-dedicated Speedlite is attached to the camera, the following options are available:

  • Enable
  • Disable
  • Enable external flash only

Exposure Control

Metering Modes 216-zone (18 x 12) metering with approx. 360,000-pixel RGB+IR metering sensor. The following metering modes selectable:

  • Evaluative metering (linked to all AF points)
  • Partial metering (center, approx. 6.2% of viewfinder)
  • Spot metering (center, approx. 1.5% of viewfinder)
  • Center spot metering
  • AF point-linked spot metering (Custom Function)
    • Linkable to all AF points.
    • With automatic AF point selection, center spot metering will apply.
  • Multi-spot metering
    • Up to eight multi-spot meter readings can be taken.
  • Center-weighted average metering
    • The selectable metering modes can be restricted (Custom Function).
Metering Range EV 0–20 (at 73°F/23°C, ISO 100, with evaluative metering)
Exposure Control Systems
  • Program AE (Shiftable)
  • Shutter-priority AE (Safety shift possible)
  • Aperture-priority AE (Safety shift possible)
  • Manual exposure
  • The metering mode can be specified.
  • Bulb
  • Three custom shooting modes
ISO Speed Range Manual setting
Normal ISO Speeds ISO 100–51200 (in 1/3-stop increments)
Expanded ISO Speeds (Equivalent) L: 50, H1: 102400, H2: 204800, H3: 409600
For [Highlight tone priority], the settable ISO speed range will be ISO 200–51200.
ISO speed safety shift possible with a Custom Function.
All the expanded ISO speeds, even for movies, are only “equivalent speeds.” Auto setting
Shooting Mode ISO Settings
No Flash With Flash
P, Tv, Av, M ISO 100–51200*1 ISO 400 fixed*1, *2, *3
During Bulb shooting ISO 400 fixed*1
*1 It depends on [Minimum] and [Maximum] of [Auto range].
*2 If overexposure will result with fill flash, the minimum ISO speed will be set to ISO 100 (except in the M and bulb modes).
*3 In the P mode, using bounce flash with an external Speedlite will have the ISO speed set automatically within ISO 400–1600 to suit the brightness.
Exposure Compensation Manual: ±5 stops in 1/3- or 1/2-stop increments
AEB: ±3 stops in 1/3- or 1/2-stop increments
* Indicated up to ±3 stops on the LCD panel and in the viewfinder.
AE Lock
  • Auto AE lock
    • In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved.
  • Manual AE lock
    • With AE lock button in P, Av, Tv and M modes. (AE lock is updated each time you press the button.)
    • Enabled in all metering modes.

Shutter

Type Vertical-travel, mechanical, focal-plane shutter with all speeds electronically-controlled
Shutter Speeds 1/8000 to 30 sec., bulb (Total shutter speed range. Available range varies by shooting mode.)
X-sync at 1/250 sec.
• Shutter speed’s control range can be set.
Shutter Release Soft-touch electromagnetic release
Self Timer 10-sec. delay, 2-sec. delay

External Speedlite

EOS Dedicated Speedlite E-TTL II autoflash with all EX Series Speedlites
Zooming to Match Focal Length Provided
Flash Exposure Compensation ±3 stops in 1/3- or 1/2-stop increments
FE Lock Provided
External Flash Settings
  • External flash control
  • Flash firing
  • E-TTL II Flash metering
  • Flash sync. Speed in Av mode
  • Flash mode
  • Radio wireless flash shooting
  • Optical wireless flash shooting
  • Zoom
  • Sync setting
  • Flash exposure compensation
  • FEB
  • Clear settings
  • Flash Custom Function setting
PC Terminal Provided
* No polarity.
* Sync speed: Since the flash duration of studio flash units vary, set a sync speed within 1/125 sec. to 1/30 sec. and check if the flash sync works.
* Both the accessory shoe (X-sync contact with maximum sync speed of 1/250 sec.) and the PC terminal can be used simultaneously for simultaneous flash firing.

Drive System

Drive Modes
  • Single shooting
  • High-speed continuous shooting
  • Low-speed continuous shooting
  • Silent single shooting
  • Silent high-speed continuous shooting
  • Silent low-speed continuous shooting
Continuous Shooting Speed*
  • Viewfinder shooting
    • High-speed: Maximum 14 shots/sec.
    • Low-speed: Maximum 13 shots/sec.
    • Silent high-speed: Maximum 5 shots/sec.
    • Silent low-speed: Maximum 4 shots/sec.
  • Live View shooting
    • High-speed: Maximum 16 shots/sec.
    • Low-speed: Maximum 13 shots/sec.
    • Silent high-speed: Maximum 5 shots/sec.
    • Silent low-speed: Maximum 4 shots/sec.

* Continuous shooting speed may vary depending on the shutter speed, the aperture, the lens being used, the battery charge and various camera settings.

Maximum Burst The maximum burst during continuous shooting is as follows:
Image Recording Quality CF Card CFast™ Card
Standard UDMA7 CFast 2.0™
L 140 Full Full
RAW 59 73 170
RAW+L 48 54 81
With “Full”, continuous shooting is possible until the card becomes full.

Live View Functions

Shooting Modes Still photo and video recording
Focusing
  • Dual Pixel CMOS AF
  • Dual Pixel CMOS AF is possible with all EF lenses.
  • Manual focus
  • Magnify the image by 5x or 10x and focus manually.
Metering Modes
  • Evaluative metering (linked to all AF points)
  • Partial metering (approx. 6.5% of viewfinder)
  • Spot metering (approx. 2.8% of viewfinder)
  • Center-weighted average metering

AE lock possible. The active metering timer can be changed.

Metering Range EV 0–20 (at 73°F/23°C, ISO 100, with evaluative metering)
Grid Display
  • Off
  • 3×3
  • 6×4
  • 3×3+diag
Exposure Simulation Same as with viewfinder shooting
Silent Shooting Provided

Video Shooting

File Format MOV (4K Movie: Motion JPEG, Full HD Movie: MPEG4 AVC/H.264; Audio: Linear PCM), MP4 (Movie: MPEG4 AVC/H.264; Audio: AAC)
Internal monaural microphone
External stereo microphone jack available
Recording Sizes 4096 x 2160 (4K)
1920 x 1080 (Full HD)
Frame Rates [4096 x 2160]: 59.94fps / 50.00fps / 29.97 fps/ 25.00fps / 24.00fps / 23.98fps
[1920 x 1080]: 119.9fps / 100.0fps / 59.94fps / 50.00fps / 29.97fps / 25.00fps / 24.00fps / 23.98fps
Focusing
  • Dual Pixel CMOS AF
  • Manual focus

* Magnify the image by 5x or 10x and focus manually (not possible during movie shooting).

Exposure Control
Shooting Mode Exposure Control Shutter Speed (sec.) Aperture
Auto Setting Manual Setting Auto Setting Manual Setting
P, bulb Program AE for movie shooting Yes Yes
Tv Movie shutter-priority AE Yes Yes
Av Movie aperture-priority AE Yes Yes
M Movie manual exposure Yes Yes
Exposure Compensation Up to ±3 stops in 1/3- or 1/2-stop increments
* If AE Microadjustment is performed, the settable exposure compensation amount will decrease by the amount of the AE Microadjustment. For example, if you set the AE Microadjustment to +1 stop, the exposure compensation amount will be limited to a maximum +2 stops on the positive side.
Continuous Shooting Time

MOV Format

Movie-recording Size Total Recording Time (Approx.) Movie Bit Rate /
File Size (Approx.)
4GB 16GB 64GB
4K
(4096 x 2160)
59.94 fps, 50.00 fps Motion JPEG 39 sec. 2 min. 10 min. 800 Mbps
5733 MB/min.
29.97 fps, 25.00 fps, 24.00 fps, 23.98 fps Motion JPEG 1 min. 4 min. 17 min. 500 Mbps
3587 MB/min.
Full HD
(1920 x 1080)
119.9 fps, 100.0 fps ALL-I 1 min. 5 min. 23 min. 360 Mbps
2585 MB/min.
59.94 fps, 50.00 fps ALL-I 2 min. 11 min. 47 min. 180 Mbps
1298 MB/min.
IPB 8 min. 34 min. 2 hr. 18 min. 60 Mbps
440 MB/min.
29.97 fps, 25.00 fps, 24.00 fps, 23.98 fps ALL-I 5 min. 23 min. 1 hr. 33 min. 90 Mbps
654 MB/min.
IPB 16 min. 1 hr. 7 min. 4 hr. 30 min. 30 Mbps
225 MB/min.

MP4 Format

Movie-recording Size Total Recording Time (Approx.) Movie Bit Rate /
File Size (Approx.)
64GB 128GB 256GB
Full HD
(1920 x 1080)
59.94 fps, 50.00 fps IPB 8 min. 35 min. 2 hr. 21 min. 60 Mbps
431 MB/min.
29.97 fps, 25.00 fps, 24.00 fps, 23.98 fps IPB 17 min. 1 hr. 10 min. 4 hr. 41 min. 30 Mbps
216 MB/min.
29.97 fps, 25.00 fps IPB (Light) 43 min. 2 hr. 53 min. 11 hr. 35 min. 12 Mbps
87 MB/min.

LCD Monitor

Type TFT color, liquid-crystal monitor
Monitor Size 3.2-inches
Pixels Approx. 1.62 million dots
Coverage Approx. 100% vertically and horizontally
Viewing angle: Approx. 170° vertically and horizontally
Brightness Control 7 levels provided
Interface Languages 25 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese)

Playback

Display Format
Single Image Display
  • No information display
  • Basic information display
  • Detailed shooting information display
    • Basic shooting information
    • Lens information and RGB histogram
    • White balance
    • Picture Style
    • Color space and noise reduction
    • Lens optical correction
    • GPS information
Index Display
  • 4-image index
  • 9-image index
  • 36-image index
  • 100-image index
Highlight Alert On the single-image display, highlight areas without any image information will blink.

Image Protection and Erase

Protection Erase protection can be applied or canceled for a single image, all images in a folder or all images in the card.
Erase Erase a single image, selected images, all images in a folder, all images in a card or erase only unprotected images.

Direct Printing

Compatible Printers N/A (Direct printing not possible)

DPOF: Digital Print Order Format

DPOF Version 1.1 compatible

Direct Image Transfer

Compatible Images JPEG images, RAW images and movies
RAW+JPEG images can be transferred JPEG only, RAW only or RAW+JPEG. If JPEG or RAW images are appended with a voice memo, the voice memo file will also be transferred.

Customization

Custom Functions Total 34
Camera User Settings Current camera settings can be registered to C1, C2 and C3 on the Mode Dial.
Automatic updating of the registered settings can be set to Enable or Diable.
My Menu Registration Up to six top-tier menu options and Custom Function settings can be registered.
Up to five My Menu tabs can be added.

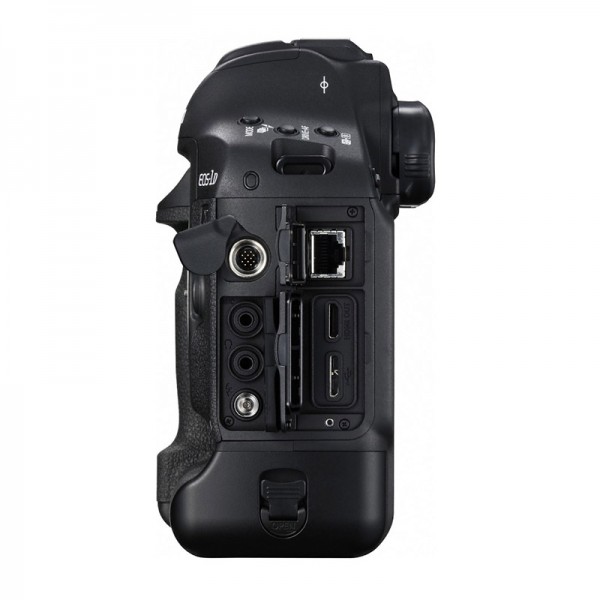

Interface

USB Terminal SuperSpeed USB (USB 3.0)

  • For computer communication
  • Image transfer
  • For Connect Station CS100 connection
Video Out Terminal AV/OUT terminal not provided.
HDMI mini OUT terminal is Type C (Resolution switches automatically) / CEC compatible.

  • The correct video format of [NTSC] or [PAL], matching the connected TV, must be set or the video image will not appear.
Extension System Terminal For connection to WFT-E8A and WFT-E6A

Power Source

Battery Battery Pack LP-E19 (or LP-E4N, LP-E4) x1

  • With the AC Adapter + DC Coupler, AC power of possible.
Number of Shots Approx. (Based on CIPA testing standards)
Shooting Method Battery Temperature Possible Shots
Viewfinder shooting Battery Pack LP-E19 At 73°F/23°C 1210
At 32°F/0°C 1020
Live View shooting At 73°F/23°C 260
At 32°F/0°C 240
Battery Check Automatic battery check when the power switch is turned ON.
Power Saving Power turns off after the set time (1, 2, 4, 8, 15 or 30 min.) of non-operation elapses.
Date/Time Battery Built-in secondary battery
When fully charged, the date/time can be maintained for approx. one month.

  • Recharge time: approx. 8 hr.
    • To become capable to maintain the right date/time for one month after main battery power exhaustion.
Start-up Time Approx. 0.1 sec. (Based on CIPA testing standards)
* Excluding the recognition time for genuineness (genuine Canon battery) at the installation of the battery.
* Start-up time becomes longer with a battery being used for the first time with the very camera.

Dimensions and Weight

Dimensions
(W x H x D)
Approx. 6.22 x 6.60 x 3.25 in. / 158.0 x 167.6 x 82.6mm
Weight Approx. 53.97 oz. / 1530g (Based on CIPA guidelines)
Approx. 47.27 oz. / 1340g (Body only, without battery, cards, body cap or eyecup)

Operating Environment

Working Temperature Range 32–113°F/0–45°C
Working Humidity Range 85% or less
Back To Top

Notice

This website or its third-party tools use cookies, which are necessary to its functioning and required to achieve the purposes illustrated in the cookie policy. If you want to know more or withdraw your consent to all or some of the cookies, please refer to the cookie policy.
By closing this banner, scrolling this page, clicking a link or continuing to browse otherwise, you agree to the use of cookies.
