Canon Patent: 300mm f/2.8, 400mm f/2.8 And 600mm f/4 With Built-in Teleconverter

October 4, 2022
Canon Patents
0 Comments

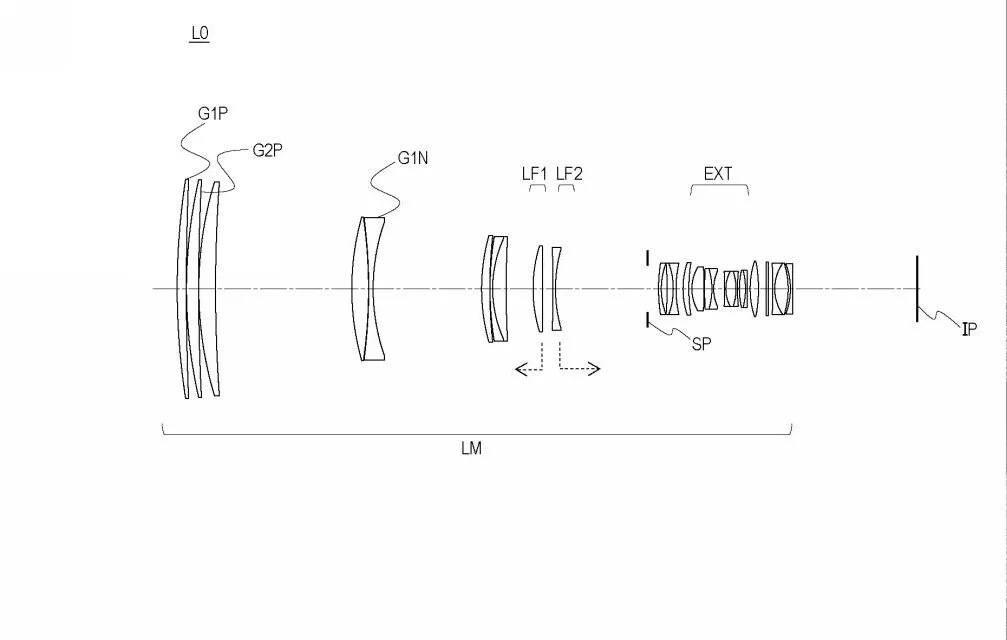

Drawing from the patent literature

A new Canon patent for telephoto lenses with built-in teleconverter. For what mount? RF mount.

Canon patent 2022142979 (Japan, published 10/3/2022) discusses optical formulas for three telephoto lenses with built-in teleconverter. The lenses are 300mm f/2.8, 400mm f/2.8 and 600mm f/2.8. From the patent literature (machine translated):

An object of the present invention is to provide an optical system having a variable power optical system that is inserted into and removed from a main optical system, and to achieve good optical performance while reducing the weight of the entire system.
Description of the Related Art
As a method for changing the focal length of an optical system used in an imaging apparatus, there is a converter method that changes the focal length of the entire system by inserting a variable magnification optical system (extender) in the optical path.
When adopting a system incorporating a variable magnification optical system, in order to achieve good optical performance while reducing the weight of the entire system including the variable magnification optical system, the insertion position of the variable magnification optical system must be appropriately selected. It is important not only to do so, but also to properly configure the main optical system. The invention disclosed in Patent Document 1 has room for improvement from the viewpoint of achieving both weight reduction and optical performance.
Summary of the invention
It is an object of the present invention to achieve good optical performance while reducing the weight of the entire system in an optical system having a variable magnification optical system that is inserted into and removed from a main optical system.

Example 1 ML
