A new Canon patent was spotted. The patent refers to two super zoom lenses. Again, as it seems, for the RF mount

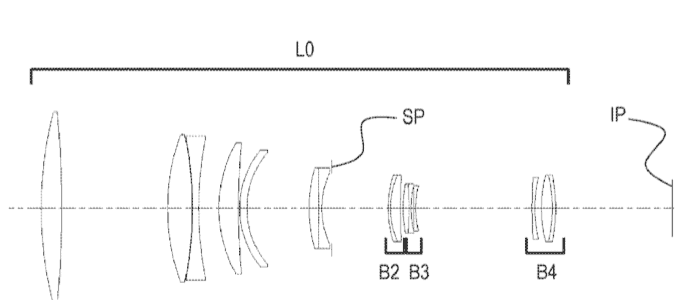

Canon patent application 2022/0035144 (USA) discusses optical formulas for a 200-500mm f/4 lens and a 300-800mm f/8 lens. Other lenses discussed in the patent literature are 200-400mm f/4 and 150mm f/5 – 600mm f/6.5. These too might be for the RF mount.

Example 1

  • Focal length: 206.00-485.01
  • F value: 4.09-4.10
  • Half angle of view: 6.00-2.55
  • Image height: 21.64
  • Overall length: 486.99
  • Back focus: 53.96

Example 3

  • Focal length: 154.55-585.00
  • F value: 5.10-6.51
  • Half angle of view: 7.97-2.12
  • Image height: 21.64
  • Overall length: 288.00-388.00
  • Back focus: 15.00-95.75

Example 4

  • Focal length: 205.00-390.00
  • F value: 4.10
  • Half angle of view: 6.02-3.18
  • Image height: 21.64
  • Overall length: 367.09
  • Back focus: 46.68

Example 5

  • Focal length: 305.00-774.99
  • F value: 8.09-8.10
  • Half angle of view: 4.06-1.60
  • Image height: 21.64
  • Overall length: 489.78
  • Back focus: 100.04

More Canon patent applications are listed here. Some particularly interesting patent applications we think might get into production are these:

[via asobinet.com]

Canon Patent: RF 100-400mm f/5.0-7.1, RF 100-300mm f/5.6-8.2

Canon Patent

Here is another Canon patent application, as usual spotted by asobinet.com. Two more RF-mount lenses are discussed.

The Canon patent application discusses optical formulas for RF 100-400mm f/5.0-7.1, RF 100-300mm f/5.6-8.2 and RF-S 55-250mm f/4.5-7.1 lenses. Note that the last one has an “RF-S”.

The RF 100-400mm f/5.0-7.1 and RF 100-300mm f/5.6-8.2 seem to be inexpensive telephoto lenses for a full frame mirrorless camera, i.e. the EOS R. The RF-S 55-250mm f/4.5-7.1 is clearly designed for an APS-C sensor, according to asobinet.com. Hence, it might be for the EOS M system, or for the fabled EOS R with crop sensor.

Embodiment 1:

  • Wide-angle intermediate telephoto
  • Focal length 103.00 200.00 388.50
  • F number 5.00 6.26 7.10
  • Half angle of view (degrees) 11.86 6.17 3.19
  • Image height 21.64 21.64 21.64
  • Lens overall length 215.58 255.38 293.58
  • BF 38.40 58.61 78.01

Embodiment 2:

  • Wide-angle intermediate telephoto
  • Focal length 103.01 200.00 388.50
  • F number 5.00 6.45 7.10
  • Half angle of view (degrees) 11.86 6.17 3.19
  • Image height 21.64 21.64 21.64
  • Lens overall length 207.99 243.96 285.99
  • BF 45.82 78.95 112.66

Embodiment 3:

  • Wide-angle intermediate telephoto
  • Focal length 103.00 200.00 388.48
  • F number 5.18 6.70 8.24
  • Half angle of view (degrees) 11.86 6.17 3.19
  • Image height 21.64 21.64 21.64
  • Lens overall length 203.50 243.44 273.50
  • BF 41.10 76.59 114.00

Embodiment 4 (for APS-C sensor):

  • Wide-angle intermediate telephoto
  • Focal length 56.66 120.00 242.50
  • F number 4.66 6.45 7.10
  • Half angle of view (degrees) 13.55 6.49 3.22
  • Image height 13.66 13.66 13.66
  • Lens overall length 129.73 155.54 184.73
  • BF 19.19 43.59 64.21

Ideas and comments are welcome.

More Canon patents are listed here. Some particularly interesting patent applications we think might get into production are these:

Canon Patent: Various Telephoto Zoom Lenses For The RF Mount

Telephoto Zoom

And here is another Canon patent application for telephoto zoom RF mount lenses. No doubt left that Canon is heavily investing in the EOS R full frame mirrorless system.

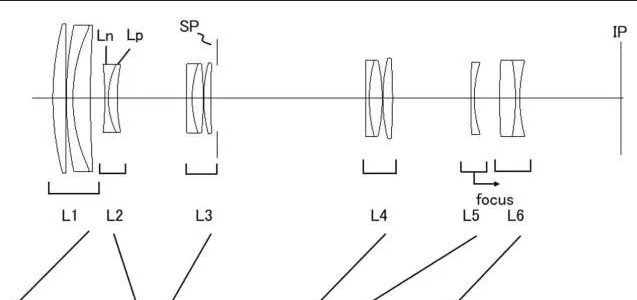

Canon patent application P2021-56407A (Japan) discusses optical formulas and designs for a bunch of telephoto zoom lenses for the RF mount. However, one of the optical designs listed below is for an APS-C sensor, so either for the EOS M (likely) or for Canon’s crop sensor DSLR lineup. The patent application was spotted by Hi Lows Note.

Embodiment 1

  • Zoom ratio 2.68
  • Focal length 72.27 135.02 193.89 mm
  • F number 4.08 4.08 4.12
  • Half angle of view(°) 16.67 9.10 6.37
  • Image height 21.64 21.64 21.64 mm
  • Lens length 137.50 175.84 193.12 mm
  • BF 14.44 24.23 29.66 mm

Embodiment 2

  • Zoom ratio 4.82
  • Focal length 101.59 200.00 490.00 mm
  • F number 4.60 5.09 6.80
  • Half angle of view(°) 12.02 6.17 2.53
  • Image height 21.64 21.64 21.64 mm
  • Lens length 222.29 279.43 312.29 mm
  • BF 21.06 29.20 64.12 mm

Embodiment 3

  • Zoom ratio 2.69
  • Focal length 72.13 100.00 194.06 mm
  • F number 2.89 2.89 2.91
  • Half angle of view(°) 16.70 12.21 6.36
  • Image height 21.64 21.64 21.64 mm
  • Lens length 161.59 187.06 220.03 mm
  • BF 15.86 20.68 31.81 mm

Embodiment 4 (for APS-C sensor)

  • Zoom ratio 4.24
  • Focal length 56.90 130.00 241.30 mm
  • F number 4.68 5.88 6.55
  • Half angle of view(°) 13.50 6.00 3.24
  • Image height 13.66 13.66 13.66 mm
  • Lens length 102.01 140.24 153.08 mm
  • BF 13.47 21.19 39.32 mm

Embodiment 5

  • Zoom ratio 3.75
  • Focal length 103.39 196.91 387.69 mm
  • F number 5.77 7.10 8.24
  • Half angle of view(°) 11.82 6.27 3.19
  • Image height 21.64 21.64 21.64 mm
  • Lens length 165.42 201.96 235.42 mm
  • BF 13.85 33.27 57.50 mm

Embodiment 6

  • Zoom ratio 3.88
  • Focal length 100.04 198.04 387.80 mm
  • F number 5.77 7.10 8.24
  • Half angle of view(°) 12.20 6.23 3.19
  • Image height 21.64 21.64 21.64 mm
  • Lens length 159.40 202.97 229.40 mm
  • BF 10.02 28.12 62.23 mm

More Canon patents are listed here. Some particularly interesting patent applications we think might get into production are these:
