Canon Patent: 200-500mm f/4 and 300-800mm f/8 Lenses

A new Canon patent was spotted. The patent refers to two super zoom lenses. Again, as it seems, for the RF mount

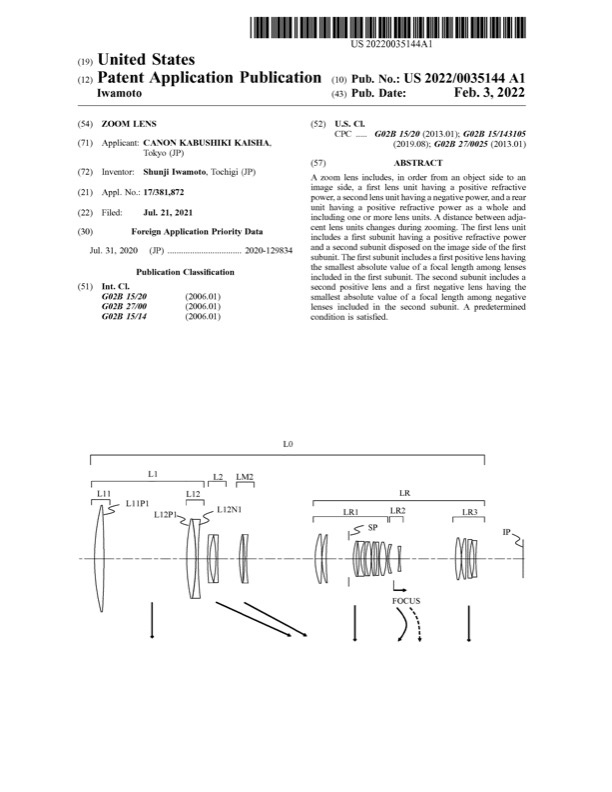

Canon patent application 2022/0035144 (USA) discusses optical formulas for a 200-500mm f/4 lens and a 300-800mm f/8 lens. Other lenses discussed in the patent literature are 200-400mm f/4 and 150mm f/5 – 600mm f/6.5. These too might be for the RF mount.

Example 1

• Focal length: 206.00-485.01
• F value: 4.09-4.10
• Half angle of view: 6.00-2.55
• Image height: 21.64
• Overall length: 486.99
• Back focus: 53.96

Example 3

• Focal length: 154.55-585.00
• F value: 5.10-6.51
• Half angle of view: 7.97-2.12
• Image height: 21.64
• Overall length: 288.00-388.00
• Back focus: 15.00-95.75

Example 4

• Focal length: 205.00-390.00
• F value: 4.10
• Half angle of view: 6.02-3.18
• Image height: 21.64
• Overall length: 367.09
• Back focus: 46.68

Example 5

• Focal length: 305.00-774.99
• F value: 8.09-8.10
• Half angle of view: 4.06-1.60
• Image height: 21.64
• Overall length: 489.78
• Back focus: 100.04
