That’s an interesting Canon patent that was spotted in japan: a built-in ND (Neutral density) filter.

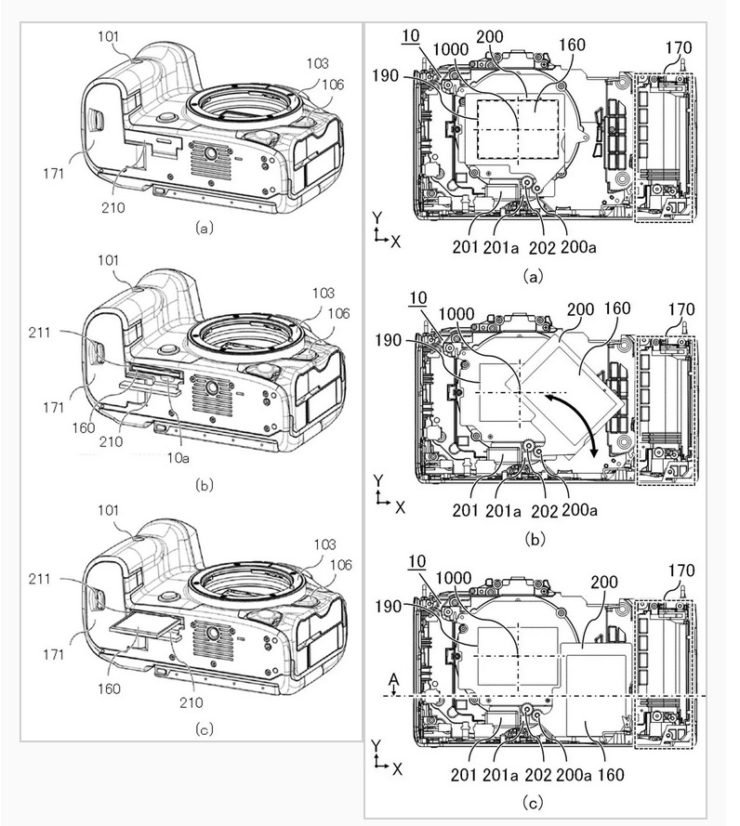

Canon patent application 2023128236 (Japan, published 9/14/2023) discusses methods and technology for an ND filter that is built-in on the camera body.

Excerpts from the patent literature:

An object of the present invention is to provide an imaging device in which an optical filter can be easily switched between a used state and a non-used state, and can appropriately control foreign matter removal from the surface of an imaging unit.

BACKGROUND ART

Conventionally, imaging devices capable of capturing images using optical filters such as neutral density filters (ND filters) have been known. Patent Document 1 discloses an imaging device that includes a plurality of ND filters and can move up and down. Patent Document 2 discloses a configuration including a through hole for blowing gas to blow away dust attached to the ND filter.

In the configuration disclosed in Patent Document 1, it is difficult to hermetically seal the ND filter and the imaging device, so there is a possibility that dust and the like may enter the interior of the imaging device. Although the configuration disclosed in Patent Document 2 can remove dust etc. attached to the ND filter, it is not possible to properly control the function of removing dust etc. attached to the surface of the image sensor unit, so that the captured image may not be affected. Dust, etc. may be reflected.

Therefore, it is an object of the present invention to provide an imaging device in which it is possible to easily switch between a state in which an optical filter is used and a state in which it is not in use, and in which foreign matter removal from the surface of an imaging unit can be properly controlled. purpose.

Effects of the Invention

According to the present invention, an image pickup device in which it is possible to easily switch between the use state and the non-use state of the optical filter, and it is possible to properly control foreign matter removal from the surface of the imaging unit. equipment can be provided.
