These Are The Canon EOS R6 Specifications (20MP it is), US Price Starting $2499

These Are The Canon EOS R6 Specifications (20MP It Is), US Price Starting $2499

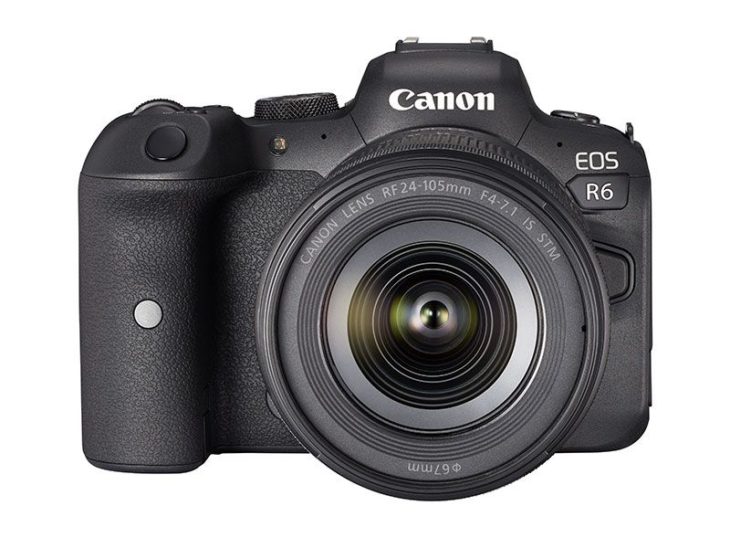

The Canon EOS R6

After the full list for the Canon EOS R5, here are the Canon EOS R6 specifications.

Canon EOS R6 specifications

Compatible Lenses
Canon RF lens group (excluding EF, EF-S and EF-M lenses)
When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)

Lens Mount
Canon RF mount

Image Processor DIGIC X

Sensor Type
CMOS sensor (compatible with Dual Pixel CMOS AF)

Effective Pixels
Approx. 20.1 megapixels

Screen Size
Approx. 36.0 x 24.0 mm

Pixel Unit
Approx. 6.56 micro m square

Total Pixels
Approx. 21.4 megapixels

Aspect Ratio
3:2 (Horizontal: Vertical)

Color Filter System
RGB primary color filters

Low Pass Filter
Installed in front of the image sensor, non-detachable

Recording Format
Compliant to Design rule for Camera File system 2.0 and Exif 2.31

Image Format
JPEG, HEIF, RAW / C-RAW (CR3), C-RAW (Canon original) ; Movies: ALL-I (Time-lapse video only), IPB, MP4

Viewfinder Type
OLED color electronic viewfinder

Coverage
Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 23mm eyepoint).

Magnification / Angle of View
Approx. 0.76x / Approx. 35.2 degrees (with 50mm lens at infinity, -1 m)

Eye Point
Approx. 23mm (at -1 m from the eyepiece lens end)

Dioptric Adjustment Range
Approx. -4.0 to + 2.0 m (dpt)

Focus Method
Dual Pixel CMOS AF

Shutter Type

Electronically controlled focal-plane shutter: Electronic first curtain
Mechanical shutter
Electronic shutter

Shutter Speeds
When [Mechanical] or [Elec. 1st- curtain] is set: 1/8000-30 sec, bulb When [Electronic] is set: 1/8000-0.5 sec.

X-sync Speed
Mechanical Shutter: 1/200 sec. Elec. 1st-curtain: 1/250 sec.

Shutter Release
Soft-touch electromagnetic release

Self Timer
10-sec. delay, 2-sec. delay

Monitor Type
TFT color, liquid-crystal monitor

Monitor Size
3.0-inch (screen aspect ratio of 3:2)
2.95 in./7.5cm diagonal (2.44 in./6.2cm width, 1.65 in./4.2cm height)

Dots
Approx. 1.62 million dots

Coverage
Approx. 100% vertically/horizontally

Brightness Control
Manually adjustable to one of seven brightness levels

Touch-screen Operation
Supported for AF Point selection; Touch AF; Touch Shutter; Menu selection; Quick Control Menu; Magnified view

Coating
Clear View LCD II

Anti-smudge coating applied.

Anti-reflection coating not applied. Interface Languages

29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

Standards Compliance IEEE 802.11b/g/n

Transmission Method
DS-SS modulation (IEEE 802.11b) OFDM modulation (IEEE 802.11g/n)

Transition Frequency (Central Frequency)

2.4 GHz band (5 GHz Wi-Fi not supported) Frequency: 2412 to 2462 MHz
Channels: 1 to 11 channels

Recording Media
Two SD card slots:

Compatible with UHS-II

Eye-Fi cards and Multimedia cards (MMC) are not supported. Working Temperature Range

32 to 104 Degree F (0 to +40 Degree C) Working Humidity Range

85% or less Dimensions (W x H x D)

Approx. 138 x 97.5 x 88.4mm Weight

Approx. 680g (including battery, SD memory card; without body cap) Approx. 598g (body only; without battery, card or body cap)

[via Nokishita]
