Canon RF 70-200mm f/2.8L IS Teardown (complex beast with organized complexity)

Roger Cicala over at Lens Rentals tore down the Canon RF 70-200mm f/2.8L IS lens for the EOS R full frame mirrorless system. This is the stuff nerd dreams are made off.

It seems Canon was (again) able to impress people with their completely new lens design. There have been discussions and speculations about Canon RF lenses compared to Canon EF lenses (have a look here). Once more the people at Lens Rentals prove that RF mount lenses have an entirely new design, and are in every meaning impressive.

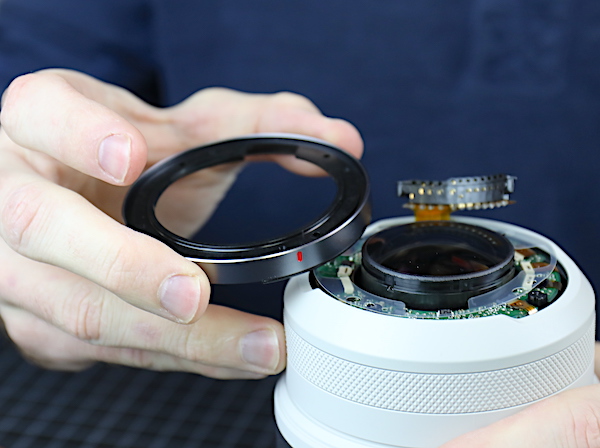

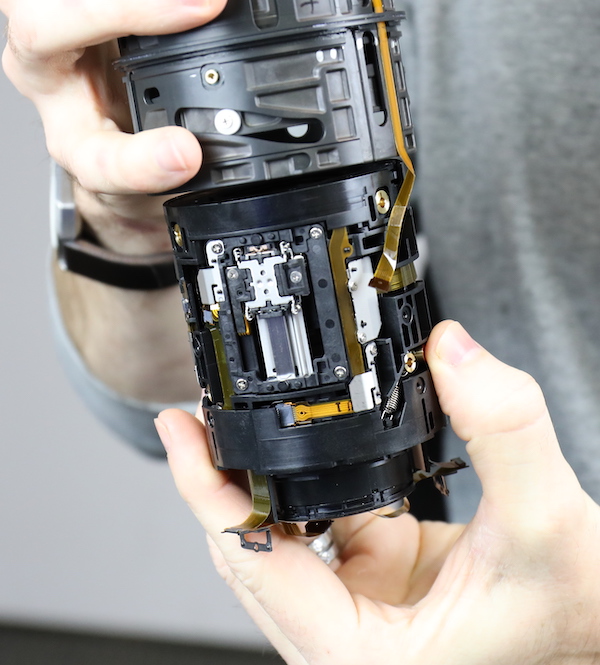

The Canon RF 70-200mm f/2.8L is a complex beast, but you get a quick feel for it being organized complexity, and it’s actually a much simpler layout than those other lenses. Some of that is from the improved optical design; there’s less glass floating around. Some of it is the use of linear focusing motors.

[…] This lens was a new design from the ground up. There’s no ‘that’s the way we’ve always done it’ holdovers. That’s a lot more work for the designers, but the result is a beautifully engineered, fully modern lens. It’s clean, functional, and straightforward.

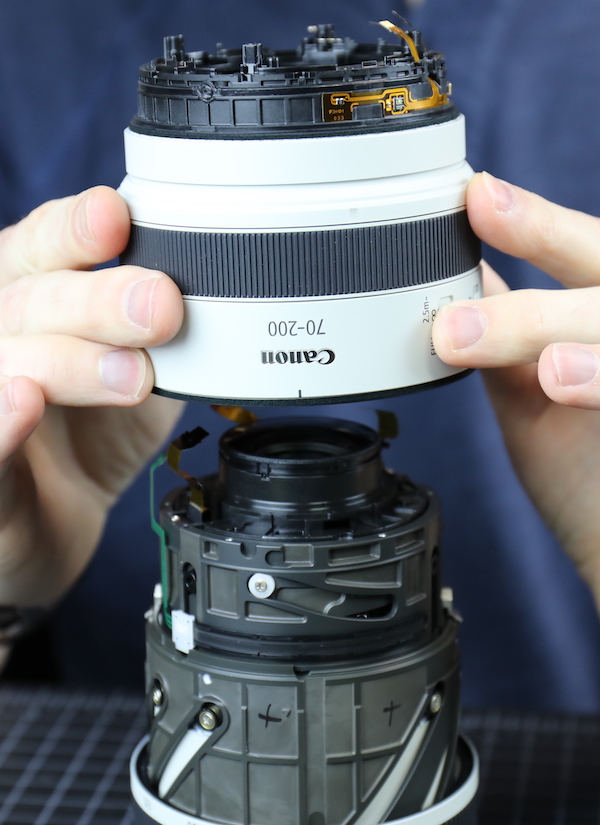

[…] It’s obviously very robustly engineered from a mechanical standpoint. The internal composites are strong as hell. There are double cams, rods, and posts everywhere. There’s no play in any moving parts. We can’t imagine there will ever be play in the moving parts unless you run over it with a truck.

See the whole teardown at Lens Rentals.

More RF 70-200mm f/2.8L IS coverage is listed here

Canon RF 70-200mm f/2.8L IS: B&H Photo, Adorama, Amazon USA, Amazon Canada, Canon Canada, Canon USA
