Canon Patent: 70-150mm f/2 and 70-200mm f/2.8 With Inner Zoom

Canon Patent

Here is a new Canon patent application, two lenses with inner zoom mechanism.

Canon patent application 2023176289 (Japan, published 12/13/2023) discusses optical formulas and methods for two zoome lenses with a not extending zoom mechanism:

  • 70-150mm f/2
  • 70-200mm f/2.8

From the patent literature:

  • An object of the present invention is to provide a zoom lens that has a long focal length and a large aperture ratio, yet is both compact and lightweight and has high optical performance.
  • BACKGROUND ART
    Zoom lenses used in imaging devices are required to be small and lightweight, to satisfactorily correct various aberrations including chromatic aberration, and to have high optical performance. Furthermore, zoom lenses are required to have a long focal length at the telephoto end, a small F number, and a large aperture ratio. Furthermore, zoom lenses are required to have a large zoom ratio and be easy to manufacture.
  • However, the zoom lens described in Patent Document 1 tends to have large aberrations including chromatic aberration, making it difficult to have high optical performance. If the power of the lens groups making up the zoom lens is weakened in order to better correct the aberrations, the zoom lens will become larger. Furthermore, if aberrations are corrected by increasing the number of lens groups that make up the zoom lens, the mechanical mechanism will become complicated and the zoom lens will become larger.
  • The present invention provides a zoom lens that has a long focal length and a large aperture ratio, yet is both compact and lightweight and has high optical performance.

Example 1

  • Focal length: 72.10-146.49
  • F value: 2.05
  • Half angle of view: 16.70-8.40
  • Image height: 21.64
  • Total length: 217.31
  • Back focus: 13.71

Example 2

  • Focal length: 72.12-194.03
  • F value: 2.90
  • Half angle of view: 16.70-6.36
  • Image height: 21.64
  • Total length: 217.47
  • Back focus: 37.98

Example 3

  • Focal length: 98.00-291.00
  • F value: 2.90
  • Half angle of view: 12.64-4.25
  • Image height: 21.64
  • Total length: 317.42
  • Back focus: 38.00

Example 4

  • Focal length: 101.97-389.88
  • F value: 4.10
  • Half angle of view: 11.98-3.18
  • Image height: 21.64
  • Total length: 359.04
  • Back focus: 52.64

More Canon patents are listed here.

[via asobinet]

Canon Set To Release A New Version Of The RF 70-200mm f/2.8L IS?

Canon RF 70-200mm F/2.8L IS Review

Canon might be set to release a mark II version of the RF 70-200mm f/2.8L IS lens. Might be.

A new rumor surfaced from the interweb of wishes and desires. It says Canon might soon release a new version of the RF 70-200mm f/2.8L IS lens for the EOS R camera system.

Says the source of the rumor:

[…] have been told that a lot of Canon sports shooters have stuck with their EF 70-200mm f/2.8L IS USM II or III for its internal zoom, even if they’re not in love with using an adapter. We have learned since yesterday that a lot of sports shooters find the current RF 70-200mm f/2.8L IS USM quite unbalanced and lacks a “consistency in feel”. A few mentioned that the locations of the rings were difficult to get used to, and felt “cramped”.

So, that would be the reason for Canon to release a new version of the RF 70-200mm f/2.8L IS. Why not.

Your thoughts?

Source: Canon Rumors

Firmware Update: Canon RF 70-200mm f/4L IS

Firmware Update

Canon released a firmware update for the Canon RF 70-200mm f/4L IS.

Canon RF 70-200mm f/4L IS firmware update 1.1.0:

1. Adds an electronic full-time manual focus function (a function that enables constant manual focus adjustment in both One-shot AF and Servo AF), which is enabled when using the EOS R5, EOS R6, and EOS R3 cameras.

2. Improves an issue in which the background is not blurred when performing slow panning with the IS (Image Stabilization) mode set to Mode 2 or Mode 3.

Download Canon RF 70-200mm f/4L IS firmware update 1.1.0.

Canon Patent: RF 70-200mm f/2.8L (not the already released lens)

Canon Patent

A new Canon patent application, once more for a lens for the RF mount. The patent application might appear to point to an already released lens but it is not.

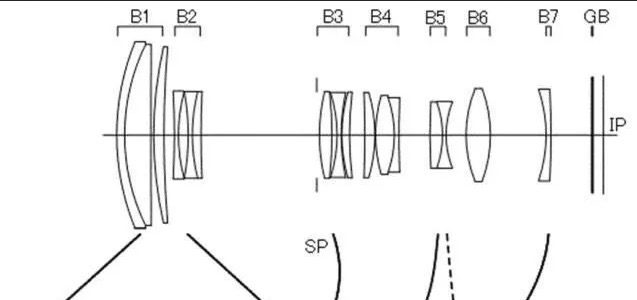

Canon patent application 2021-173892 (Japan) discusses optical formulas for what seems to be a RF 70-200mm f/2.8L lens. However, as asobinet.com points out, the patent does not refer to the already released RF 70-200mm f/2.8L. The lens described in the patent seems to have an entirely different optical design.
