Canon Patent For 10mm f/2.8 Lens For Full Frame Sensor (EOS R?)

Canon Patent
View Post

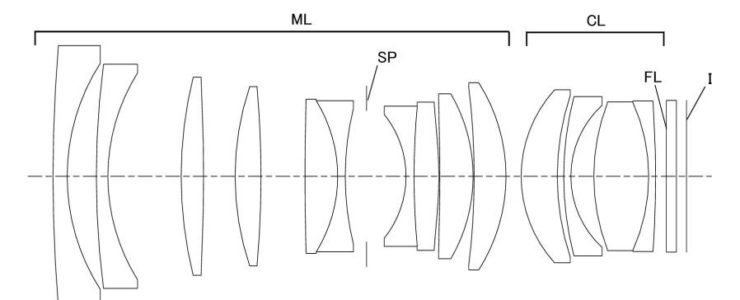

Hi Lows Note spotted a Canon patent application (2019-040219) for a 10mm f/2.8 lens for full frame cameras. I’m not the expert but given the back focus distance I think it is for a mirrorless system, hence for the Canon EOS R.
  • Focal length: 10.30 mm
  • F number: 2.88
  • Half angle of view: 64.54
  • Image height: 21.64 mm
  • Lens length: 124.58 mm
  • Back focus: 38.00 mm
[expander_maker id=”2″ more=”Click to read the article” less=”Read less”]

More Canon patent applications are listed here. Some particularly interesting patent applications we think might get into production in the next few years are these:

[/expander_maker]

Latest Canon Patent Round-Up (Telephoto Primes, Defocus Smoothing, EOS R Lenses)

canon patent
View Post

Canon patent application in Japan 2019-032390 and 2019-032391 discuss optical formulas for various telephoto prime lenses:

Focal distance 294.00
F number 2.91
a half field angle (degree) — 4.21
image height 21.64
Whole length of the lens 276.40
BF 65.35

Focal distance 392.00
F number 2.90
a half field angle (degree) — 3.16
Image height 21.64
Whole length of the lens 371.25
BF 69.92

Focal distance 490.00
F number 4.12
a half field angle (degree) — 2.53
Image height 21.64
Whole length of the lens 410.77
BF 66.03

Focal distance 588.00
F number 4.12
a half field angle (degree) — 2.11
Image height 21.64
Whole length of the lens 474.78
BF 80.59

Focal distance 784.00
F number 5.80
a half field angle (degree) — 1.58
Image height 21.64
Whole length of the lens 484.53
BF 75.94

Canon patent application in Japan (2019-028212) discusses another optical formula for an RF 70-300mm lens for the EOS R system:

focal length 71.53 132.28 293.70
F-number 4.16 5.18 5.83
half-field angle (degree) 16.83 9.29 4.21
Image height 21.64 21.64 21.64
Lens total length 179.52 216.99 250.81
BF 48.94 22.62 18.05

Canon patent application in Japan (2019-028258) discusses the optical formula for what might be kit lenses for an APS-C DSLR:

focal length 17.00 45.29 130.97
F number 3.71 5.63 6.30
half angle of view (degree) 38.78 16.78 5.95
image height 13.66 13.66 13.66
total lens length 88.79 109.43 136.79
BF Air) 9.50 32.69 41.15

focal length 17.00 48.75 130.97
F number 3.59 6.05 6.30
Half angle of view 38.78 15.65 5.95
Image height 13.66 13.66 13.66
Lens total length 93.09 114.59 143.09
BF 11.62 39.19 46.30

focal length 18.45 46.95 80.00
F number 3.25 4.48 5.60
Half angle of view 36.52 16.22 9.69
Image height 13.66 13.66 13.66
Lens total length 98.76 113.68 139.63
BF 9.45 9.45 9.45

focal length 17.00 44.95 130.97
F number 3.88 5.96 6.30
half angle of view (degree) 38.78 16.90 5.95
image height 13.66 13.66 13.66
total lens length 88.59 109.18 136.47
BF 11.16 34.60 41.37

focal length 18.14 30.19 45.00
F-number 2.06 3.00 5.00
half-field angle (degree) 33.66 23.99 16.62
Image height 12.08 13.43 13.43
total lens length 92.24 97.67 90.17
BF 13.96 9.90 3.00

Canon patent applications via Canon News.

Canon Patent For 400mm, 600mm and 800mm Telephoto Lenses With Diffractive Optical Elements

canon patent
View Post

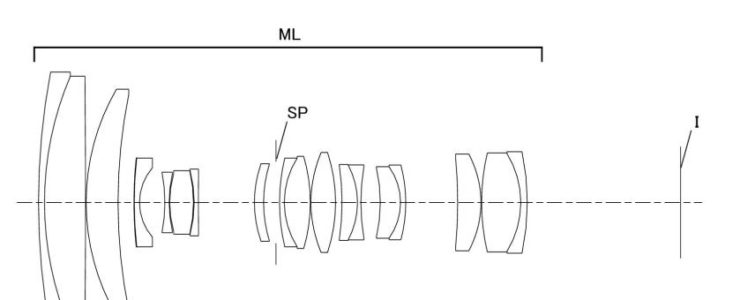

Hi Lows Note spotted a Canon patent application (2019-028317) for 400mm f/4, 600 mm f/4, and 800 mm f/5.6 telephoto lenses with DOE (Diffractive Optical Elements).

Focal distance 582.00
F number 4.12
Half field angle (degree) 2.13
Image height 21.64
Whole length of the lens 394.25
BF 62.79

Focal distance 405.00
F number 4.12
Half field angle (degree) 3.06
Image height 21.64
Whole length of the lens 330.16
BF 50.46

Focal distance 795.00
F number 5.60
Half field angle (degree) 1.56
Image height 21.64
Whole length of the lens 490.24
BF 105.13

More Canon patent applications are listed here. Some particularly interesting patent applications we think might get into production in the next few years are these:

Canon Patent: RF 70-300mm F/4-5.6 IS Lens For EOS R System

canon patent
View Post

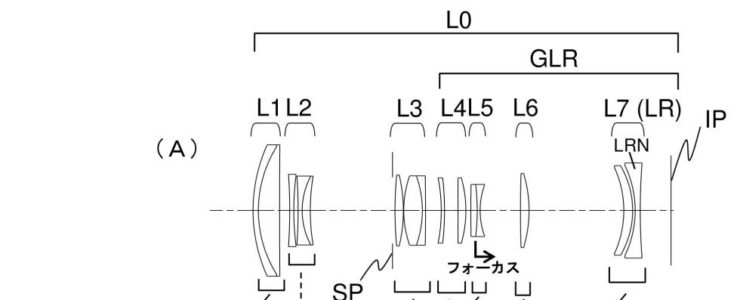

Canon is investing in their new EOS R system in a concrete and solid way. Here is a Canon patent application (2019-020679) for an RF 70-300mm F/4-5.6 IS lens. This lens is the EOS R version of a very common lens aimed at non professionals, for the consumer market.

Next week (2/14/19) Canon will announce the EOS RP, the company’s first entry level full frame mirrorless camera, and a lens like the RF 70-300mm F/4-5.6 IS is sure to hit the market soon (most patent application never do). I’m just not 100% sure it’s also image stabilised.

  • Zoom ratio: 4.11
  • Focal length: 71.40~136.34~293.23 mm
  • F number: 3.94~4.72~5.83
  • Half angle of view: 16.86~9.02~4.22
  • Image height: 21.64 mm
  • Lens length: 165.00~202.03~235.83 mm
  • Back focus: 12.14~31.67~72.45 mm

The Canon patent application was spotted by Hi Low Notes.

More Canon patent applications are listed here. Some particularly interesting patent applications we think might get into production in the next few years are these:
