Canon Patent: Prime Lenses And A Wide Angle Zoom For Canon EOS R

Canon patent application 2019-204115A presents a bunch of prime lenses and a wide angle zoom, all for the RF mount

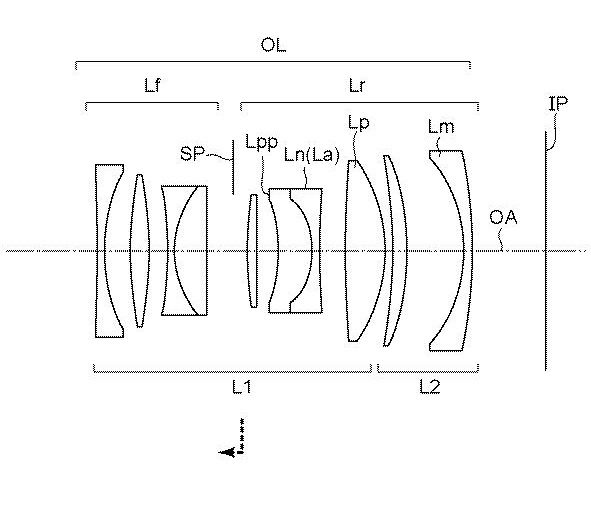

The Canon patent discusses the optical formulas for these lenses for the Canon EOS R full frame mirrorless system:

• 35mm F/1.8
• 20mm F/2
• 35mm F/2.8
• 45mm F/2.8
• 35mm F/2
• 16-34mm F/4

With more details:

35mm F/1.8 (RF 35mm F1.8 MACRO IS STM)

• Focal length: 35.60 mm
• F number: 1.85
• Half angle of view: 31.22
• Image height: 21.64 mm
• Lens length: 81.87 mm
• Back focus: 13.49 mm

RF 20mm F/2

• Focal length: 20.50 mm
• F number: 2.06
• Half angle of view: 46.54
• Image height: 21.64 mm
• Lens length: 90.13 mm
• Back focus: 13.50 mm

RF 35mm F/2.8

• Focal length: 35.70 mm
• F number: 2.88
• Half angle of view: 31.22
• Image height: 21.64 mm
• Lens length: 60.00 mm
• Back focus: 13.15 mm

RF 45mm F/2.8

• Focal length: 44.70 mm
• F number: 2.85
• Half angle of view: 25.83
• Image height: 21.64 mm
• Lens length: 62.63 mm
• Back focus: 13.13 mm

RF 35mm F/2

• Focal length: 35.91 mm
• F number: 2.06
• Half angle of view: 31.07
• Image height: 21.64 mm
• Lens length: 50.50 mm
• Back focus: 15.05 mm

RF 16-34mm F/4

• Focal length: 16.48 24.02 33.75 mm
• F number: 4.12
• Half angle of view: 52.70 42.01 32.66
• Image height: 21.64 mm
• Lens length: 117.64 109.16 110.13 mm
• Back focus: 11.50 19.17 29.63 mm
