Canon Patent: 20mm f/1.8 And 23mm f/1.8 Lenses For The RF Mount
And here is yet another Canon patent discussing optical formulas for lenses for the EOS R full frame mirrorless system.

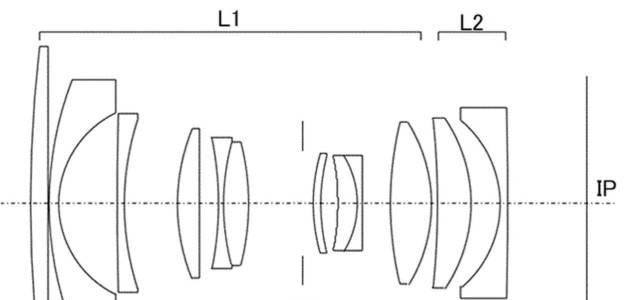

Canon patent application P2021-71624A (Japan) discusses optical designs for a 20mm f/1.8 lens and a 23mm f/1.8 lens for full frame mirrorless systems. That’s the RF mount. The patent was spotted by Hi Lows Note.
Embodiment 1: RF 23mm f/1.8
- Focal length 23.40 mm
- F number 1.85
- Half angle of view (degree) 42.76
- Image height 21.64 mm
- Lens length 89.32 mm
- BF 11.72 mm
Embodiment 2: RF 23mm f/1.8
- Focal length 23.28 mm
- F number 1.85
- Half angle of view (degree) 42.90
- Image height 21.64 mm
- Lens length 93.32 mm
- BF 12.72 mm
Embodiment 3: RF 20mm f/1.8
- Focal length 20.60 mm
- F number 1.85
- Half angle of view (degree) 46.40
- Image height 21.64mm
- Lens length 88.73 mm
- BF 11.72 mm
