Canon Patent: 20mm f/1.8 And 23mm f/1.8 Lenses For The RF Mount

And here is yet another Canon patent discussing optical formulas for lenses for the EOS R full frame mirrorless system.

Canon patent application P2021-71624A (Japan) discusses optical designs for a 20mm f/1.8 lens and a 23mm f/1.8 lens for full frame mirrorless systems. That’s the RF mount. The patent was spotted by Hi Lows Note.

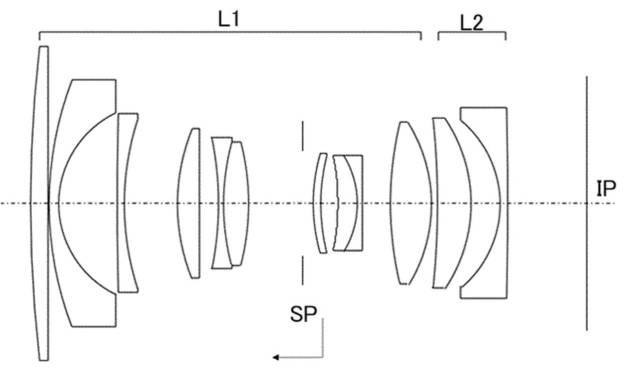

Embodiment 1: RF 23mm f/1.8

• Focal length 23.40 mm
• F number 1.85
• Half angle of view (degree) 42.76
• Image height 21.64 mm
• Lens length 89.32 mm
• BF 11.72 mm

Embodiment 2: RF 23mm f/1.8

• Focal length 23.28 mm
• F number 1.85
• Half angle of view (degree) 42.90
• Image height 21.64 mm
• Lens length 93.32 mm
• BF 12.72 mm

Embodiment 3: RF 20mm f/1.8

• Focal length 20.60 mm
• F number 1.85
• Half angle of view (degree) 46.40
• Image height 21.64mm
• Lens length 88.73 mm
• BF 11.72 mm
