An RF 52-83mm F/1.2 Lens For The EOS R Shows Up In Canon Patent

Another weird zoom range spotted in a Canon patent application.

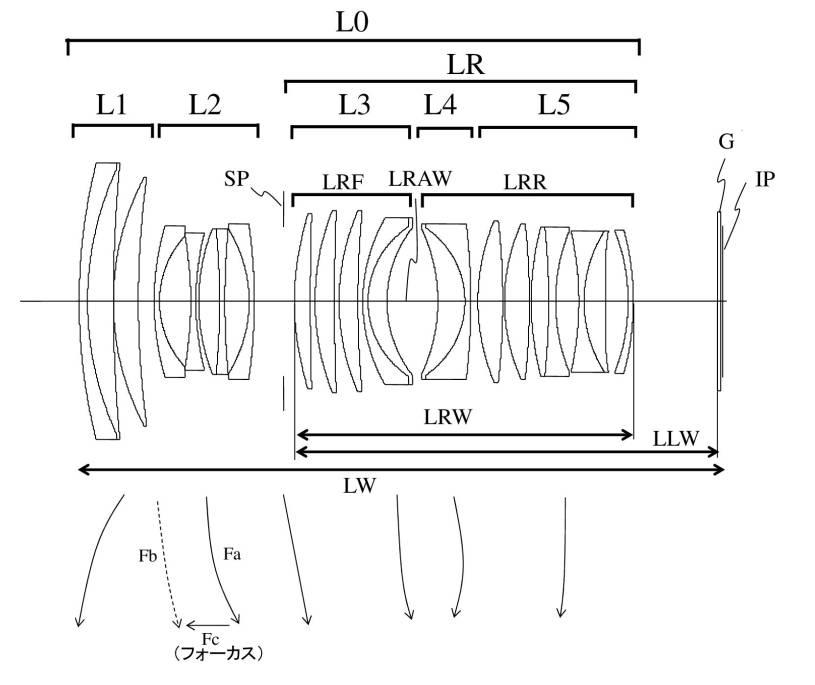

Canon patent application 2019-138941 (Japan) describes the optical formula for a 52-83mm F/1.2 lens for full frame mirrorless systems.

Two embodiments can be found in the patent literature:

• Zoom ratio: 1.60
• Focal length: 51.50 – 64.01 – 82.52 mm
• Fno.: 1.24
• Half angle: 22.79 – 18.67 – 14.69
• Lens length: 201.66 – 204.48 – 204.68 mm
• Back focus: 22.89 – 23.95 – 25.47 mm

And:

• Zoom ratio: 1.60
• Focal length: 51.50 – 64.01 – 82.52 mm
• Fno.: 1.13
• Half angle: 22.79 – 18.67 – 14.69
• Lens length: 220.20 – 225.05 – 224.20 mm
• Back focus: 6.51 – 6.53 – 8.64 mm
