Canon Patent For 17-70mm Lens For EOS R System

Here is another Canon patent application for a lens for the EOS R full frame mirrorless system.

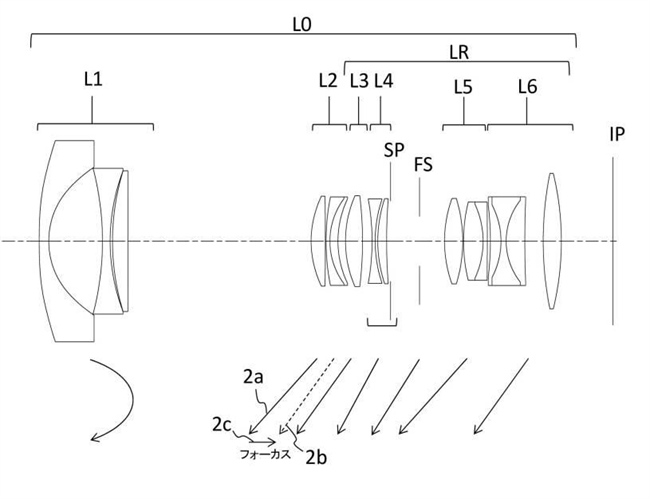

Canon patent application 2019-139172 (Japan) discusses optical formulas for a 17-70mm lens for the Canon EOS R system.

• Focal length 17.40 35.02 68.69
• F-number 3.57 4.18 5.85
• Half field angle (degrees) 51.19 31.71 17.48
• Image height 21.64 21.64 21.64
• Total lens length 149.59 133.68 150.50
• BF 13.43 27.63 57.99

• Focal length 17.10 34.82 72.70
• F number 3.57 4.18 5.85
• Half angle of view (degree) 51.68 31.85 16.57
• Image height 21.64 21.64 21.64
• Total lens length 151.00 135.57 157.71
• BF 13.13 27.81 63.49

• Focal length 18.70 37.55 77.50
• F-number 3.57 4.18 5.85
• Half angle of view (degree) 49.16 29.95 15.60
• Image height 21.64 21.64 21.64
• Total lens length 146.50 128.90 147.50
• BF 15.19 27.72 59.84
