Canon Patent For RF 24-80mm f/4 Lens For EOS R System

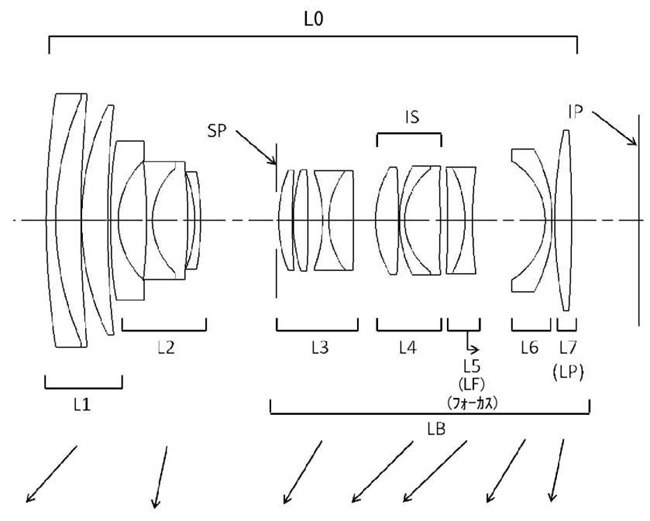

Canon patent application 2019-191607, spotted by Canon News, discusses optical formulas for a Canon RF 24-80mm f/4 lens for the Canon EOS R system.

• Focal length 24.72 48.09 82.45
• F number 4.12 4.12 4.12
• Half angle of view ( 41.19 24.22 14.70
• Image height 21.64 21.64 21.64
• Total lens length 119.50 134.52 149.55
• BF 13.50 18.71 22.73

The Canon patent also discusses the optical formula for an RF 24-130mm f/4 lens.

• Focal length 24.72 63.46 131.00
• F-number 4.12 4.12 4.12
• Half angle of view (degree) 41.19 18.83 9.38
• Image height 21.64 21.64 21.64
• Total lens length 137.50 168.92 200.33
• BF 13.50 24.03 28.27
