Canon Patent: 22mm, 24mm, 33mm, 35mm, all f/1.4, For The RF Mount

And here is a new Canon patent application for lenses for the RF mount: 22mm, 24mm, 33mm, 35mm, and all are f/1.4.

Canon patent application 2021-113905A (spotted by High Lows Note) discusses optical formulas for the following RF-mount lenses:

• RF 22mm f/1.4
• RF 24mm f/1.4
• RF 33mm f/1.4
• RF 35mm f/1.4

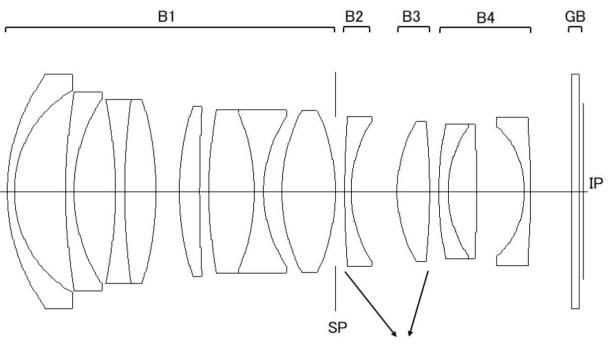

Here they are:

Embodiment 1

• FOCAL LENGTH (MM): 35.00
• F NUMBER: 1.42
• HALF ANGLE OF VIEW (DEGREE): 31.73
• IMAGE HEIGHT (MM): 21.64
• LENS LENGTH (MM): 126.05
• BACK FOCUS (MM): 11.06

Embodiment 2:

• FOCAL LENGTH (MM): 35.00
• F NUMBER: 1.42
• HALF ANGLE OF VIEW (DEGREE): 31.72
• IMAGE HEIGHT (MM): 21.64
• LENS LENGTH (MM): 128.31
• BACK FOCUS (MM): 11.06

Embodiment 3

• FOCAL LENGTH (MM): 34.99
• F NUMBER: 1.43
• HALF ANGLE OF VIEW (DEGREE): 31.73
• IMAGE HEIGHT (MM): 21.64
• LENS LENGTH (MM): 123.63
• BACK FOCUS (MM): 11.06

Embodiment 4:

• FOCAL LENGTH (MM): 24.17
• F NUMBER: 1.42
• HALF ANGLE OF VIEW (DEGREE): 41.83
• IMAGE HEIGHT (MM): 21.64
• LENS LENGTH (MM): 124.64
• BACK FOCUS (MM): 11.06

Embodiment 5:

• FOCAL LENGTH (MM): 33.11
• F NUMBER: 1.42
• HALF ANGLE OF VIEW (DEGREE): 33.17
• IMAGE HEIGHT (MM): 21.64
• LENS LENGTH (MM): 126.01
• BACK FOCUS (MM): 11.06

Embodiment 6:

• FOCAL LENGTH (MM): 33.03
• F NUMBER: 1.42
• HALF ANGLE OF VIEW (DEGREE): 33.23
• IMAGE HEIGHT (MM): 21.64
• LENS LENGTH (MM): 125.39
• BACK FOCUS (MM): 11.06

Embodiment 7:

• FOCAL LENGTH (MM): 34.99
• F NUMBER: 1.43
• HALF ANGLE OF VIEW (DEGREE): 31.73
• IMAGE HEIGHT (MM): 21.64
• LENS LENGTH (MM): 122.18
• BACK FOCUS (MM): 11.06

Embodiment 8:

• FOCAL LENGTH (MM): 22.00
• F NUMBER: 1.42
• HALF ANGLE OF VIEW (DEGREE): 44.52
• IMAGE HEIGHT (MM): 21.64
• LENS LENGTH (MM): 125.60
• BACK FOCUS (MM): 11.06
