Canon Patent: 24-100mm f/2.8 And 24-70mm f/2-3.5

Here is a new Canon patent application, for a 24-100mm f/2.8 and a 24-70mm f/2-3.5 lens. The design seems to be agnostic, meaning no mount type is specified.

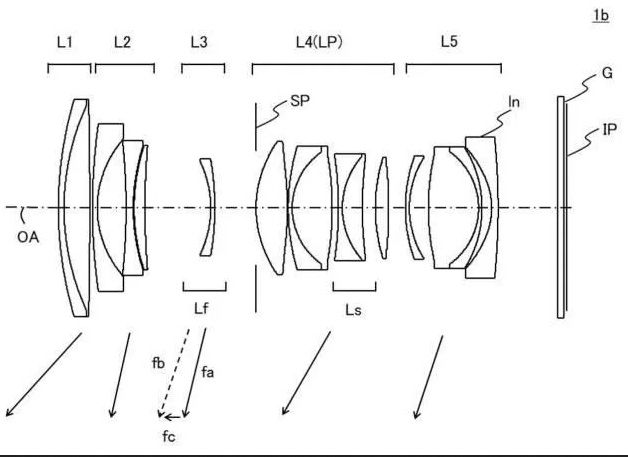

Canon patent application 2021-189218 (Japan) discusses optical formulas for two lenses: 24-100mm f/2.8 and a 24-70mm f/2-3.5.

Example 1

• Zoom ratio 3.92
• Wide-angle intermediate telephoto
• Focal length 24.72 48.69 97.00
• F number 2.90 2.90 2.90
• Half angle of view 37.60 23.96 12.57
• Lens total length 119.56 132.86 152.43
• BF 5.30 10.90 19.16

Example 2

• Zoom ratio 2.75
• Wide-angle intermediate telephoto
• Focal length 24.72 40.75 67.96
• F number 2.06 3.50 3.50
• Half angle of view 37.60 27.97 17.66
• Lens total length 105.84 115.84 131.74
• BF 13.77 21.03 28.47

Example 3

• Zoom ratio 2.75
• Wide-angle intermediate telephoto
• Focal length 24.72 40.96 67.96
• F number 2.90 2.90 2.90
• Half angle of view 37.60 27.84 17.66
• Lens total length 93.83 105.51 121.76
• BF 3.29 10.64 20.42

Example 4

• Zoom ratio 3.92
• Wide-angle intermediate telephoto
• Focal length 24.72 48.16 97.00
• F number 2.90 3.50 3.50
• Half angle of view 37.60 24.19 12.57
• Image height 19.04 21.64 21.64
• Lens total length 98.44 114.37 139.82
• BF 3.88 12.29 24.26
