Here is a new Canon patent application. Canon patent application 2024111453 (Japan, published 8/19/2024) discusses…
Canon Patent: Air Cooling System That Also Does In Body Image Stabilization
Well, that’s an interesting Canon patent application: an air-cooled heat dissipation system that also functions as IBIS (In Body Image Stabilization).

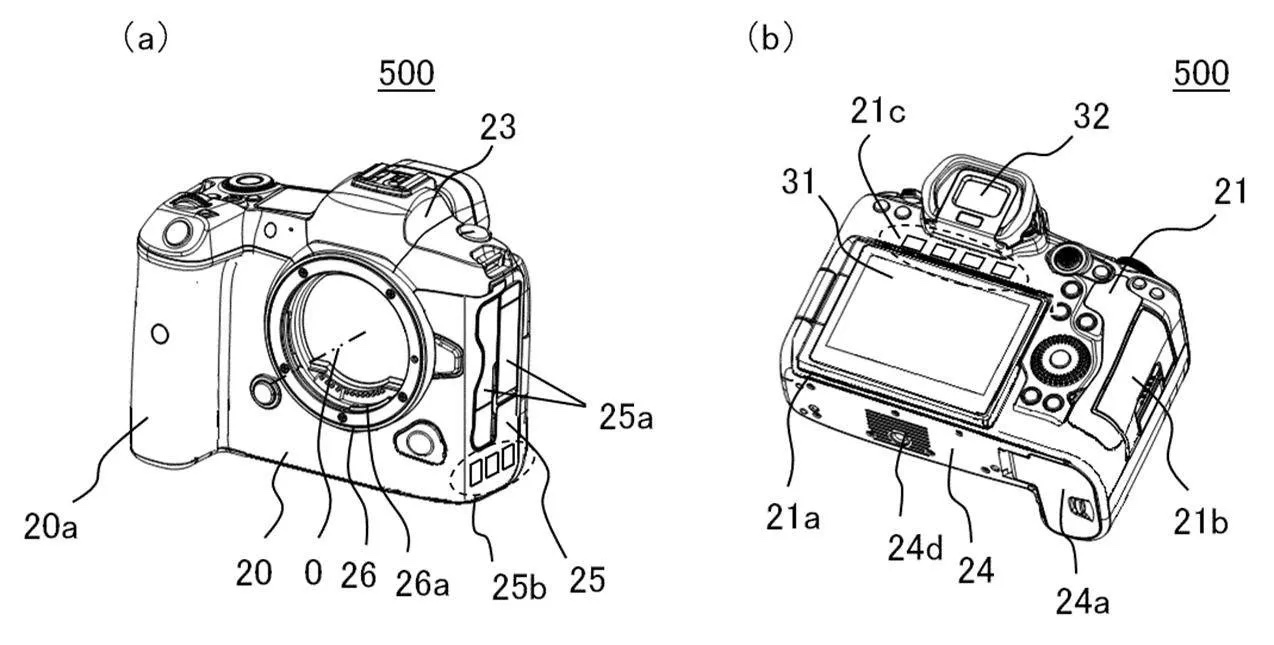

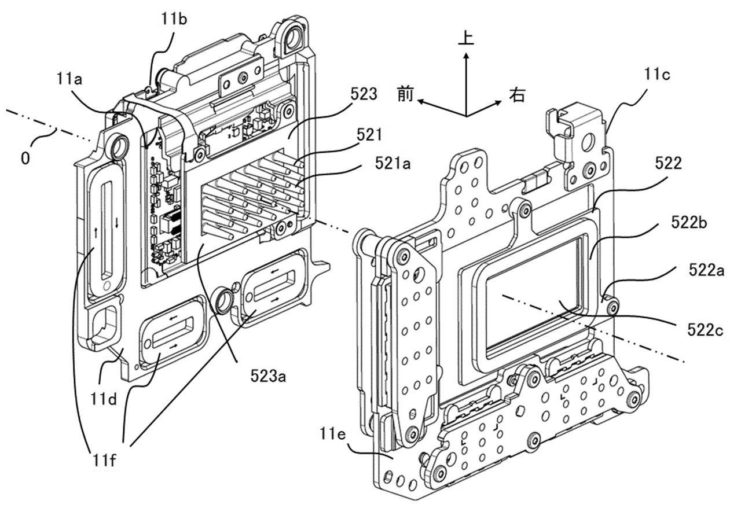

Canon patent application 2022137975 (Japan) discusses methods and technology for an air cooling system that also works for IBIS. How is that achieved? The patent literature describes a cooling method that is very similar to what is done for computer CPUs. Heat dissipation elements are mounted on the back of the imaging sensor, the cooling air passes through these elements. Extract from the patent literature (machine translated):
An imaging apparatus capable of efficiently dissipating heat generated by an imaging element movable in a direction orthogonal to an optical axis is provided.
Description of the Related Art
Conventionally, in order to improve image quality, there has been known an imaging apparatus that optically corrects image blur by moving an imaging device in a direction perpendicular to the optical axis . The image pickup device is required to have sufficient heat dissipation because the heat generated in the image pickup device affects the image quality when driving image blur correction, continuous shooting, moving image shooting, and the like.
In the configuration disclosed in Japanese Patent Laid-Open No. 2002-200013, the amount of heat radiation generated by the imaging element is determined by the thickness and width of the heat radiation sheet connected to the imaging element .
Description of the Related Art
In recent years, the amount of heat generated by an imaging device has increased due to improvements in moving image performance of imaging devices. For this reason, with the configuration disclosed in Patent Document 1, it is difficult to sufficiently dissipate the heat generated by the image pickup device, and there is a possibility that the temperature rise of the image pickup device cannot be eliminated. On the other hand, if the thickness and width of the heat dissipation sheet are increased in order to increase the amount of heat dissipation, the movement load of the imaging element increases .
SUMMARY OF THE INVENTION
Accordingly, it is an object of the present invention to provide an imaging apparatus capable of efficiently dissipating heat generated by an imaging element movable in a direction perpendicular to the optical axis.
Means for Solving the Problems
An imaging apparatus as one aspect of the present invention includes an imaging element section having a fixed unit and a movable unit movable with respect to the fixed unit ; The movable unit has an imaging element and a heat exchange member, and at least part of the heat exchange member is inserted into the duct from an opening of the duct .
