Canon Patent: RF 17-60mm, 17-70mm, 17-85mm, all f/4-5.6

Here is a new Canon patent application for RF mount lenses.

Canon patent application 2021-182053 (Japan, spotted by Hi Lows Note) discusses optical formulas for the following lenses: RF 17-60mm f/4-5.6, 17-70mm f/4-5.6 and 17-85mm f/4-5.6.

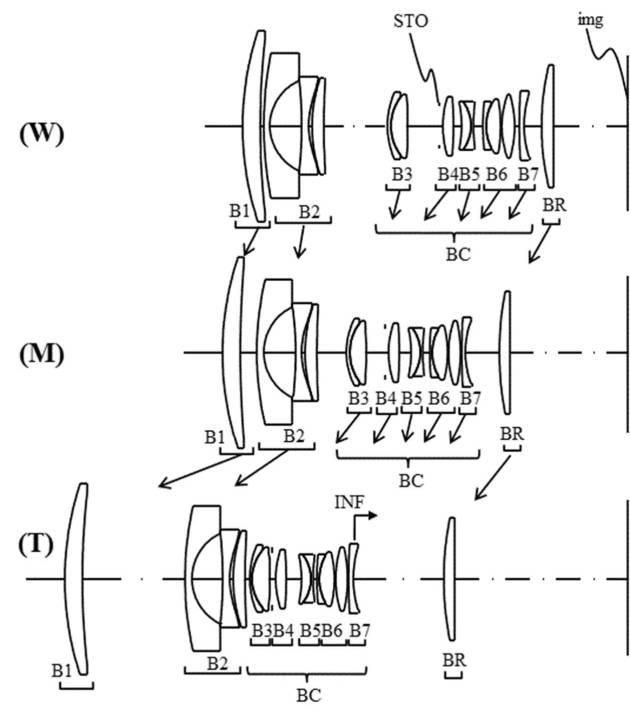

Embodiment 1

• Focal length (mm): 17.50 28.00 58.00
• F number: 4.10 4.50 5.70
• Half angle of view (degree): 51.50 38.16 20.77
• Maximum image height (mm): 22.00 22.00 22.00
• Image height (mm): 19.47 20.98 21.94
• Lens length (mm): 108.50 114.27 158.50
• BF (mm): 21.38 33.45 49.01

Embodiment 2

• Focal length (mm): 17.50 35.00 68.00
• F number: 4.10 4.50 5.70
• Half angle of view (degree): 51.50 32.15 17.93
• Maximum image height (mm): 22.00 22.00 22.00
• Image height (mm): 19.43 21.75 22.10
• Lens length (mm): 123.50 130.13 173.50
• BF (mm): 18.27 33.13 42.65

Embodiment 3

• Focal length (mm): 17.50 40.00 83.50
• F number: 4.10 4.50 5.70
• Half angle of view (degree): 51.50 28.81 14.76
• Maximum image height (mm): 22.00 22.00 22.00
• Image height (mm): 19.43 22.05 22.41
• Lens length (mm): 130.50 135.64 183.50
• BF (mm): 14.89 34.26 43.12

Embodiment 4

• Focal length (mm): 17.50 35.00 68.00
• F number: 4.10 4.50 5.70
• Half angle of view (degree): 51.50 32.15 17.93
• Maximum image height (mm): 22.00 22.00 22.00
• Image height (mm): 19.39 21.53 22.27
• Lens length (mm): 126.50 125.61 176.50
• BF (mm): 14.57 27.63 38.40

Don’t think these lenses will ever go into production.
