Canon Patent: RF 180mm f/3.5 Macro And RF 200mm f/4 Macro

And here is a new Canon patent application and as most of them are, this one too is for RF-mount lenses.

asobinet.com spotted Canon patent application 2021-152568 (Japan). The patent application discusses optical formulas for both RF 180mm f/3.5 Macro and RF 200mm f/4 Macro lenses. The former lens might replace the EF 180mm F3.5L Macro USM, a lens that has already been discontinued.

PROBLEM TO BE SOLVED: To provide an optical system which is suitable for a macro lens and can suppress aberration fluctuation.

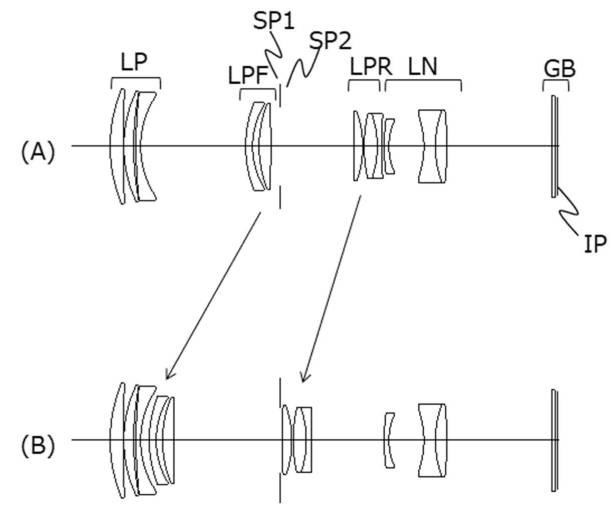

The optical system of each embodiment has an aperture aperture SP2 as a main focus aperture that determines (limits) the light beam of the open F number (Fno), and a positive refractive power arranged on the object side of the aperture aperture SP2. It has a front focus group LPF, a rear focus group LPR having a positive refractive power arranged on the image side of the aperture aperture SP2, and a negative refractive power arranged on the image side of the rear focus group LPR. It has a posterior group LN. The “group” as used herein means each group of lenses whose spacing changes during focusing.

Embodiment 1:

• Focal length 171.00
• F number 3.50
• Half angle of view (°) 7.21
• Image height 21.64
• Overall length of optical system 194.49
• BF 47.67
• Magnification ∞ β = -1

Embodiment 2:

• Focal length 174.43
• F number 3.50
• Half angle of view (°) 7.07
• Image height 21.64
• Overall length of optical system 189.49
• BF 13.73
• Magnification ∞ β = -1

Embodiment 3:

• Focal length 140.00
• F number 3.50
• Half angle of view (°) 8.78
• Image height 21.64
• Overall length of optical system 177.49
• BF 35.17
• Magnification ∞ β = -1

Embodiment 4:

• Focal length 194.00
• F number 4.00
• Half angle of view (°) 6.36
• Image height 21.64
• Overall length of optical system 202.49
• BF 39.36
• Magnification ∞ β = -1
