Rather interesting Canon patent application. A box-shaped interchangeable lens camera. Canon patent application 2023024538 (Japan,…
Canon Patent: Switch Between Electronic And Dot-sight Viewfinder
This seems a rather interesting and innovative Canon patent application. How about switching between dot-sight and electronic viewfinder?
Canon patent application 2022-23783 (Japan) discusses methods and technology for a device that allows to switch between dot-sight and electronic viewfinder. If you want to learn more about dot-sight, have a look here.
PROBLEM TO BE SOLVED: To provide a small display device capable of switching between a sight and an electronic viewfinder.
Conventionally, when a distant moving subject such as a bird or an airplane is photographed by using an image pickup device, a sighting device called a dot sight is widely used. Further, in an image pickup device equipped with a high-magnification lens, a display device such as an electronic viewfinder is widely used in order to enable stable shooting. Patent Document 1 discloses an image pickup apparatus including both an electronic viewfinder and a sighting device.
However, in the image pickup device disclosed in Patent Document 1, since the function of the sighting device and the function of the electronic viewfinder are realized by using different display devices, the size of the image pickup device becomes large.

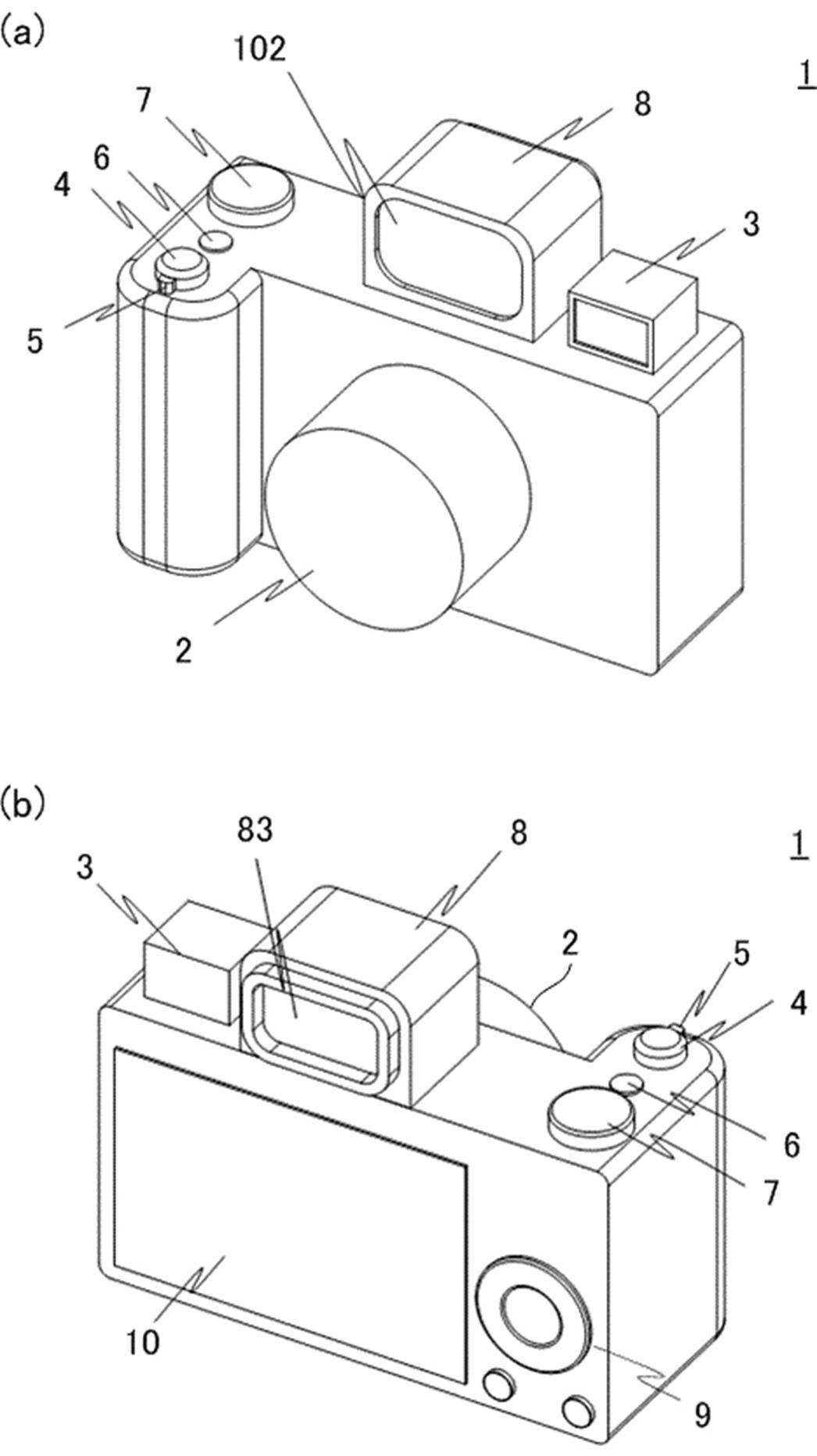

The display device as one aspect of the present invention is arranged between the image display element, the eyepiece, the objective window, and the eyepiece and the objective window, and is displayed on the image display element. It has a reflective optical element that guides the image to the eyepiece, and the reflective optical element can switch between the first state and the second state by changing the transmission rate, and the first state. In, the image displayed on the image display element can be visually recognized through the eyepiece, and in the second state, the image from the objective window and the image through the eyepiece. It is possible to visually recognize an image in which an image displayed on the display element is superimposed.
According to the present invention, it is possible to provide a small display device and an image pickup device capable of switching between a sighting device and an electronic viewfinder.
Is this cool? Me thinks it is.
The Canon patent application was spotted by asobinet.com. More Canon patent applications are listed here. Some particularly interesting patent applications we think might get into production are these:
