Canon Patent: Zoom Lens That Shrinks When Zooming To Telephoto

A new Canon patent application. A lens that becomes shorter when you zoom to the telephoto end. Usually it is the opposite.

asobinet.com spotted this Canon patent application. The lens seems to have f2.8/f4 and covers the standard focal length. Interesting lens but I don’t think it will ever go into production.

INDUSTRIAL APPLICABILITY: A zoom lens and an image pickup device having the same.

PROBLEM TO BE SOLVED: To provide a zoom lens having a large aperture ratio and a small size but having high optical performance, and an image pickup apparatus having the same.

In recent years, with the increasing functionality of image pickup devices, there is a demand for a compact and lightweight zoom lens having a large aperture ratio. As a zoom lens that satisfies this requirement, a negative lead type zoom lens in which a lens group having a negative refractive power is arranged on the most object side is known.

An object of the present invention is to provide a zoom lens having a large aperture ratio and a small size but having high optical performance, and an image pickup apparatus having the same.

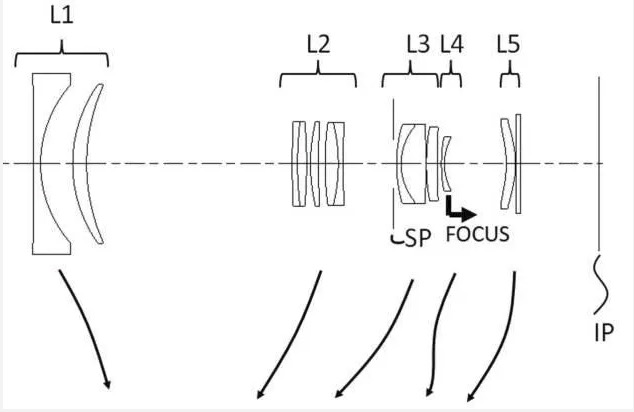

Example 1

• Focal length: 28.84-67.90
• F value: 2.91
• Half angle of view: 32.65-17.67
• Image height: 21.64
• Overall length: 149.46-115.94
• Back focus: 13.48-27.78

Example 3

• Focal length: 28.84-60.00
• F value: 4.12
• Half angle of view: 32.68-19.83
• Image height: 18.50-21.64
• Overall length: 141.33-104.61
• Back focus: 19.70-35.51
