Canon Patent: 200-400mm F4 x 1.4 & 200-500mm F4 x 1.4 Lenses For RF Mount

A new Canon patent application for two RF-mount telephoto lenses with extender: 200-400mm F4 x 1.4 and 200-500mm F4 x 1.4.

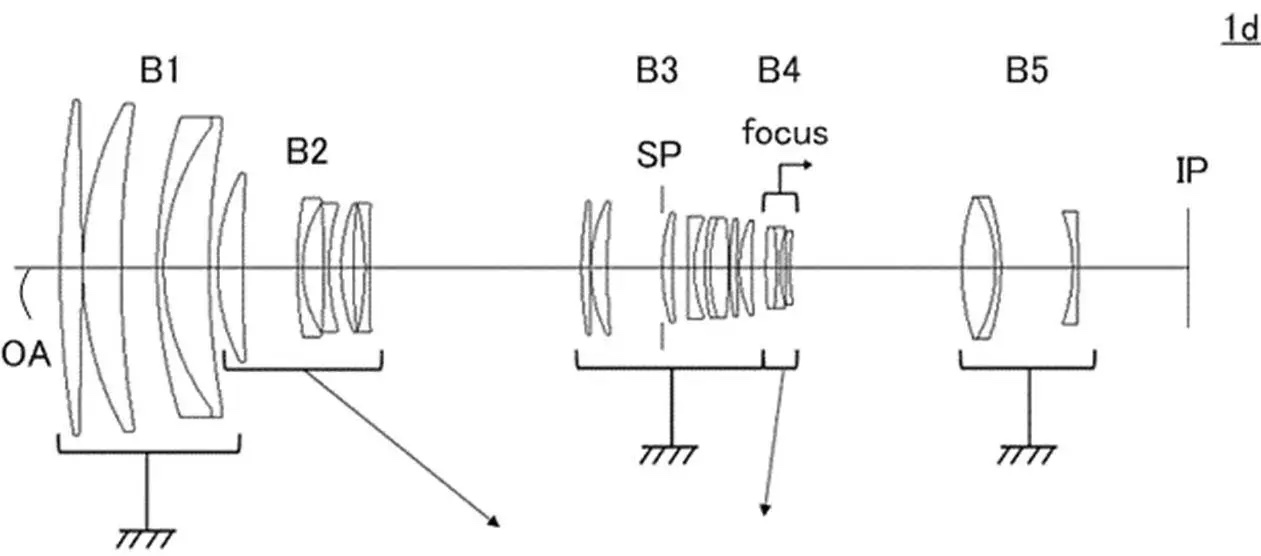

Canon patent application P2022185663 (Japan, published 12/15/2022) discusses optical formulas for two RF-mount telephoto lenses with 1.4 extender, the RF 200-400mm F4 x 1.4 and RF 200-500mm F4 x 1.4.

From the patent literature:

Kind Code: A1 To provide a compact, high-performance zoom lens into which an extender group can be inserted.

BACKGROUND ART

Patent Document 1 and Patent Document 2 disclose an optical system (telephoto lens) in which a magnification conversion optical group (extender group) for extending the focal length on the telephoto end side can be inserted and removed.

In the optical systems disclosed in Patent Documents 1 and 2, an extender is provided on the image side of the stop for the purpose of downsizing. In this case, since it is necessary to secure a wide interval between the lens groups on the image side of the diaphragm, it is necessary to arrange the focus lens group on the object side of the diaphragm. If the focus lens group is arranged on the object side of the diaphragm, the diameter of the focus lens group is determined by the diameter of the Fno light beam at the telephoto end.

SUMMARY OF THE INVENTION

Accordingly, it is an object of the present invention to provide a small-sized, high-performance zoom lens and an imaging device into which an extender group can be inserted.

Example 1

• Focal length: 205.1-385.5
• F-value: 4.1
• Half angle of view: 5.99-3.21
• Image height: 21.635
• Total length: 367.62
• Back focus: 39.994

Example 2

• Focal length: 290.4-543.2
• F-value: 5.8
• Half angle of view: 4.26-2.28
• Image height: 21.635
• Total length: 367.62
• Back focus: 39.994

Example 3

• Focal length: 207.0-487.9
• F-value: 4.1
• Half angle of view: 5.97-2.54
• Image height: 21.635
• Overall length: 410.05
• Back focus: 39.998

Example 4

• Focal Length: 288.1-678.9
• F-value: 5.7
• Half angle of view: 4.30-1.83
• Image height: 21.635
• Overall length: 410.05
• Back focus: 39.998
