Canon Patent: 30-90mm f/1.5, 18-45mm f/1.5, 70-210mm f/2.5 Cinema Lenses

A new Canon patent and for once it doesn’t refer to RF mount lenses but for Cinema optics: 30-90mm f/1.5, 18-45mm f/1.5, 70-210mm f/2.5.

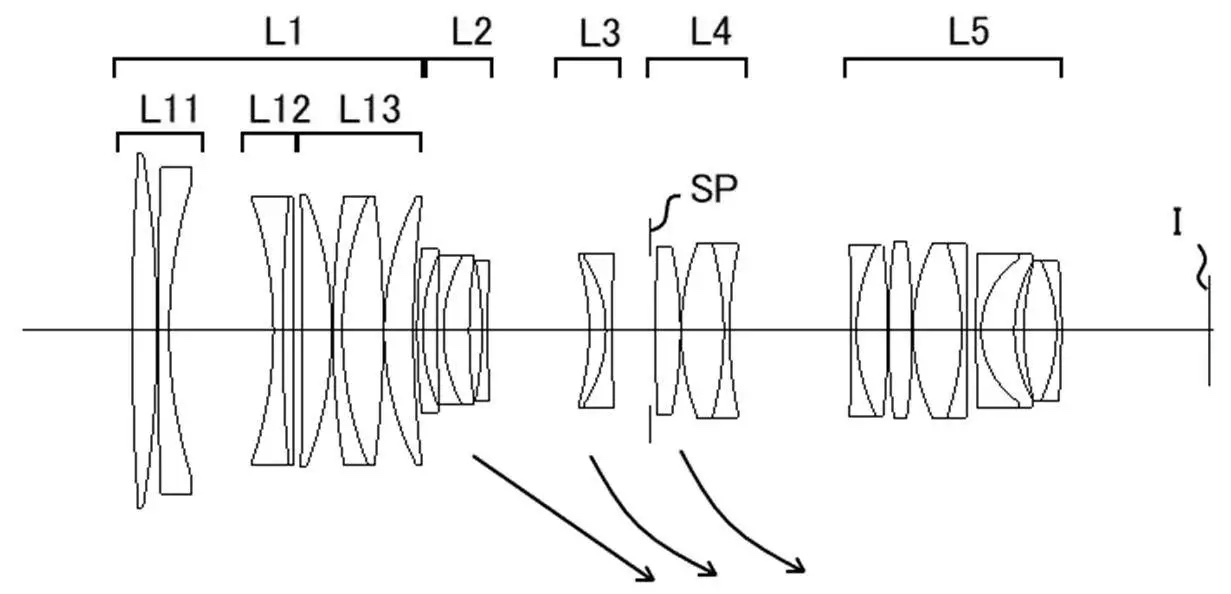

Canon patent application 2022119007 (Japan) discusses optical formulas for three lenses we think are Cinema or broadcasting lenses:

• 30-90mm f/1.5
• 18-45mm f/1.5
• 70-210mm f/2.5

From the patent literature:

To provide a zoom lens that is advantageous in terms of, for example, a large aperture, small size and light weight, and high optical performance over the entire zoom range.

The lens diameter of the lens group closest to the object side in the first lens group is determined by the off-axis ray at the wide-angle end, and the lens diameter of the lens group closest to the image side in the first lens group is determined by the on-axis ray at the telephoto end. Therefore, if the first lens group is thickened, the size of the lens will increase if the aperture is to be further increased. In the zoom lens of Patent Literature 1, since the first lens group is thick, the zoom lens may become large if it is intended to accommodate a large-format sensor such as a Super 35 format or a full-frame format while maintaining the F-number.

Example 1

• Focal length: 31.20-89.85
• F-value: 1.51
• Half angle of view: 25.38-9.35
• Total length: 284.23
• Back focus: 39.00

Example 2

• Focal length: 21.00-80.57
• F-value: 1.51
• Half angle of view: 35.17-10.41
• Total length: 288.03
• Back focus: 39.00

Example 3

• Focal length: 18.01-45.01
• F-value: 1.51
• Half angle of view: 39.422-18.20
• Total length: 308.88
• Back focus: 39.00
