Canon Patent: 35mm f/1.4 And 28mm f/1.4 For The EOS R System

Here is one more Canon patent for RF mount lenses, another one in an already long list: 35mm f/1.4 and 28mm f/1.4 lenses for full frame mirrorless cameras, i.e. the EOS R.

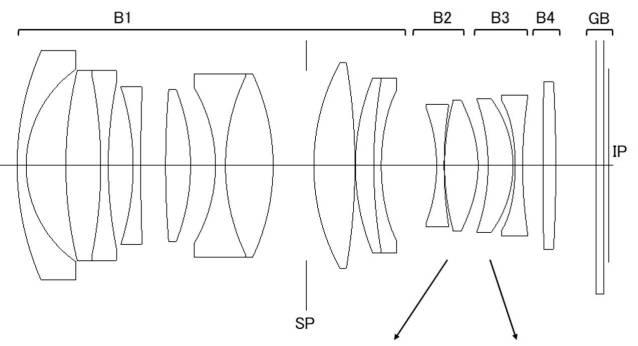

Canon patent application 2021-063966 (Japan) discusses optical formulas for a 35mm f/1.4 lens and a 28mm f/1.4 lens, both for the RF mount. The patent application was spotted by Canon News.

28mm f/1.4:

Focus distance      28.00
F number             1.42
Half angle (degree) 37.69
Image height        21.64
Lens total length  140.62
BF                  21.99

35mm f/1.4:

Focus distance      34.98
F number             1.42
Half angle (degree) 31.73
Image height        21.64
Lens total length  154.45
BF                  16.17
