Canon Patent: RF 135mm f/1.8L IS USM Lens For The EOS R Camera System

And yet another Canon patent application for an RF-mount lens.

Canon patent application 2023099390 (Japan, published 7/13/2023) discusses optical formulas for what appears to be an RF 135mm f/1.8L IS USM lens.

From the patent literature:

Optical System and Imaging Device Having the Same

An object of the present invention is to provide an optical system equipped with an anti-vibration group that achieves both miniaturization and high anti-vibration performance, and an imaging apparatus having the optical system.
Telephoto lenses equipped with anti-vibration groups are required to achieve both miniaturization and high anti-vibration performance . In the telephoto lens equipped with the anti-vibration group of Patent Document 1, the anti-vibration performance is ensured by arranging the anti-vibration group at a position slightly away from the image plane position toward the object side, but it is difficult to reduce the size.

SUMMARY OF THE INVENTION

It is an object of the present invention to provide an optical system equipped with a vibration reduction group that achieves both miniaturization and high vibration reduction performance, and an imaging apparatus having the optical system.

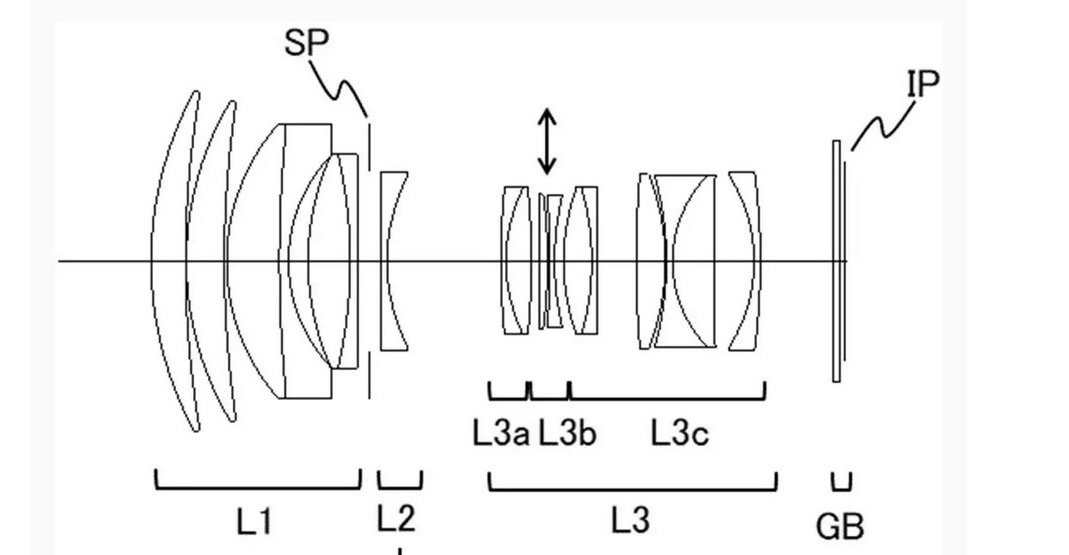

Example:

• Focal length: 130.98
• F-value: 1.85
• Half angle of view: 9.38
• Image height: 21.64
• Total length: 147.99
• Back focus: 17.45
