Canon Patent: RF 24-120mm f/2.8 IS & RF 85mm f/1.4 IS

A new Canon patent application for a RF 24-120mm f/2.8 IS and RF 85mm f/1.4 IS lenses.

Canon patent application 2022175604 (Japan, published 11/25/2022) discusses optical formulas for two RF mount lenses, RF 24-120mm f/2.8 IS and RF 85mm f/1.4 IS. From the patent literature:

An object of the present invention is to reduce the size and weight of a movable group decentered with respect to an optical axis, while suppressing the occurrence of chromatic aberration due to the movable group.

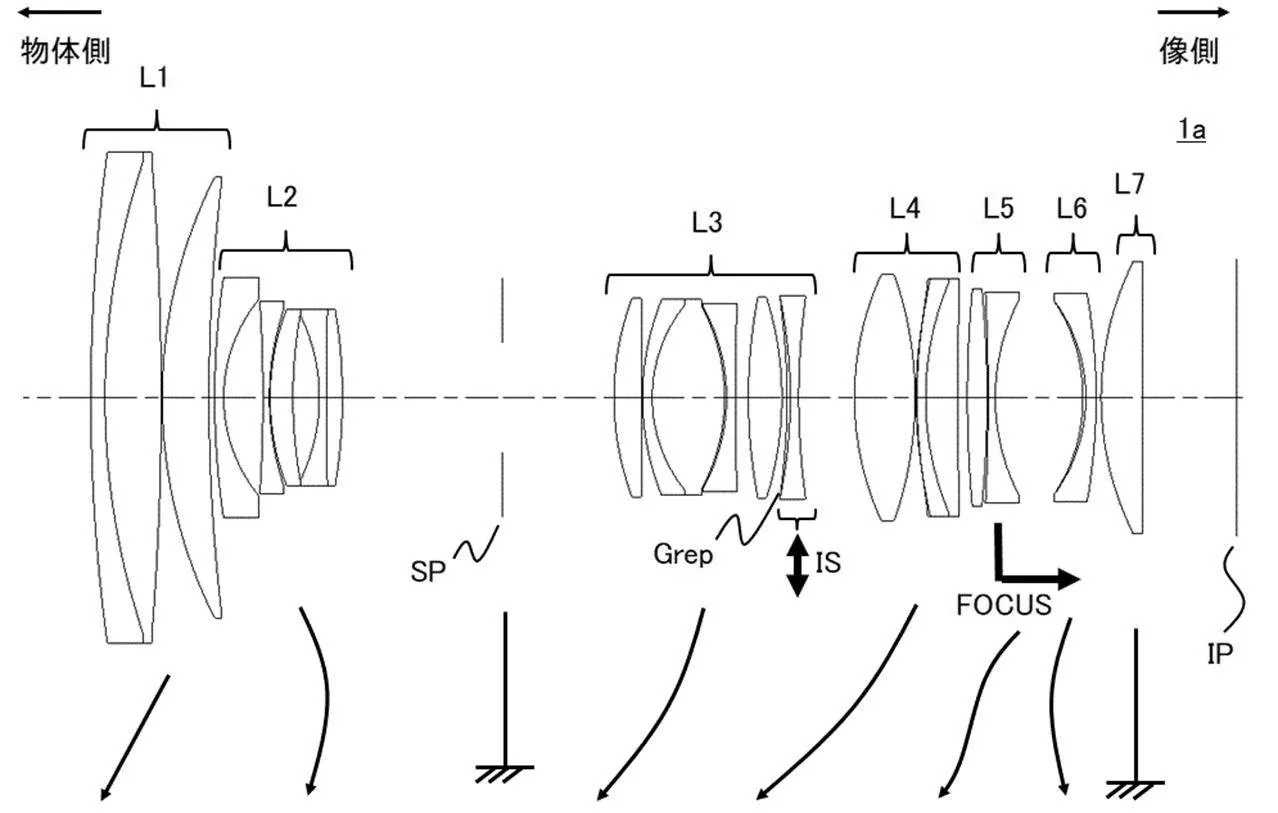

Example 1

• Focal Length: 24.72-116.36
• F-value: 2.91
• Half angle of view: 37.12-10.53
• Image height: 21.64
• Total length: 178.45-204.02
• Back focus: 14.59

Example 2

• Focal length: 82.47
• F-value: 1.45
• Half angle of view: 14.70
• Image height: 21.64
• Overall length: 126.52
• Back focus: 13.50

Example 3

• Focal length: 103.16-387.89
• F-value: 4.64-7.30
• Half angle of view: 11.84-3.19
• Image height: 21.64
• Total length: 176.10-288.59
• Back focus: 15.98-63.01
