Canon Patent: 35mm f/1.2 Lens For Full Frame Mirrorless Cameras

And yet another Canon patent, as usual spotted by Hi Lows Note. A 35mm f/1.2 lens for the EOS R system.

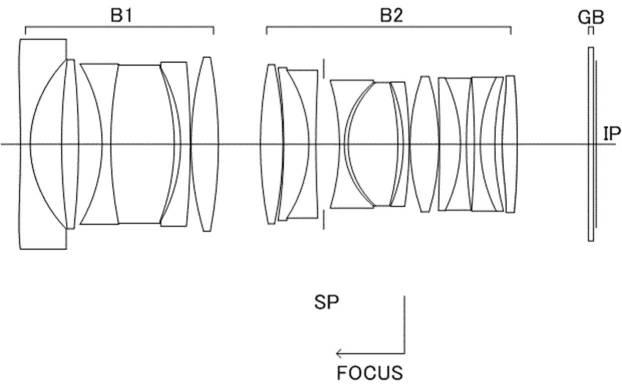

Canon patent 2021-60475A (Japan) discusses various optical designs for a 35mm f/1.2 lens for the RF mount. This is definitely a lens we are going to see in the RF lens lineup. A 35mm f/1.2 for sure is going to be released.

Embodiment 1

• Focal length: 34.00 mm
• F number: 1.23
• Half angle of view: 32.47
• Image height: 21.64 mm
• Lens length: 147.45 mm
• Back focus: 19.82 mm

Embodiment 2

• Focal length: 35.76 mm
• F number: 1.23
• Half angle of view: 31.17
• Image height: 21.64 mm
• Lens length: 147.45 mm
• Back focus: 19.50 mm

Embodiment 3

• Focal length: 34.00 mm
• F number: 1.23
• Half angle of view: 32.47
• Image height: 21.64 mm
• Lens length: 147.45 mm
• Back focus: 20.95 mm

Embodiment 4

• Focal length: 34.00 mm
• F number: 1.23
• Half angle of view: 32.47
• Image height: 21.64 mm
• Lens length: 149.45 mm
• Back focus: 16.49 mm
