Canon Patent: More RF Mount Lenses – 14mm f/1.8 & 20mm f/1.4

And yet another Canon patent application for RF mount lenses. This time we have a 14mm f/1.8 and a 20mm f/1.4.

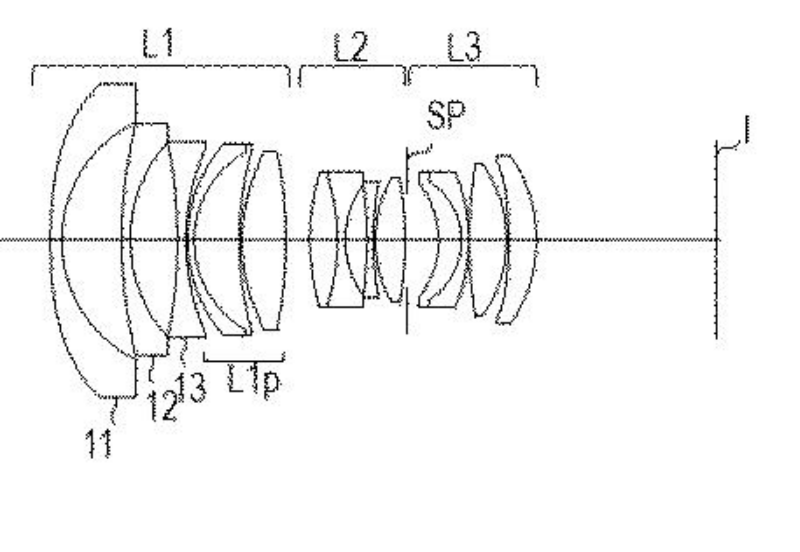

Canon patent application 2021-184030 (Japan) discusses optical designs for a 14mm f/1.8 and a 20mm f/1.4 lens, both for full frame mirrorless cameras, i.e. for the EOS R lineup.

PROBLEM TO BE SOLVED: To provide a single focus lens which is advantageous in terms of wide angle, small size and high optical performance, for example.

An image pickup optical system used in a photographic camera and a movie camera is required to have a wide angle, a small F value, and an image pickup optical system having substantially uniform resolution from the center of the screen to the periphery of the screen over the entire object distance. ing. In order to realize such an imaging optical system, a first lens group fixed at the time of focusing is arranged on the most object side, and a plurality of negative lenses are continuously arranged from the most object side in the first lens group. A single focus lens (single focus optical system) has been proposed. Patent Document 1 describes a single focal length optical system having a focal length of 24 mm and an F value of 1.4, and Patent Document 2 describes a single focal length optical system having a focal length of 20 mm and an F value of 1.4.

Example 1

• Focal length 18.46
• F number 1.73
• Angle of view 49.53
• Image height 21.64
• Lens total length 144.17
• BF 39.17

Example 2

• Focal length 14.42
• F number 1.74
• Angle of view 56.31
• Image height 21.64
• Lens total length 151.49
• BF 37.99

Example 4

• Focal length 20.00
• F number 1.46
• Angle of view 47.25
• Image height 21.64
• Lens total length 146.11
• BF 38.99

Example 5

• Focal length 16.00
• F number 1.74
• Angle of view 53.52
• Image height 21.64
• Lens total length 127.35
• BF 35.73
