Canon Patent: RF 9-18mm f/4 Wide Angle Zoom For EOS R System

Here is a new Canon patent application, and it is a rather interesting one.

Canon patent application P2022065383 (Japan) discusses optical formulas for a RF 9-18mm f/4 wide angle zoom lens for the Canon EOS R system.

PROBLEM TO BE SOLVED: To provide a zoom lens which is compact and has high resolving power while having a wide angle of view.

With the increase in the number of pixels of an image pickup apparatus, there is a demand for a zoom lens having a wide angle and high optical performance. Patent Document 1 discloses a wide-angle zoom lens having a focal length at a wide-angle end of about 11 mm in terms of 35 mm and an angle of view of about 120 °.

However, when the zoom lens is widened, the refractive power of each lens constituting the zoom lens increases and the resolution decreases.

The present invention provides a zoom lens having a wide angle of view, yet being compact and having high resolving power.

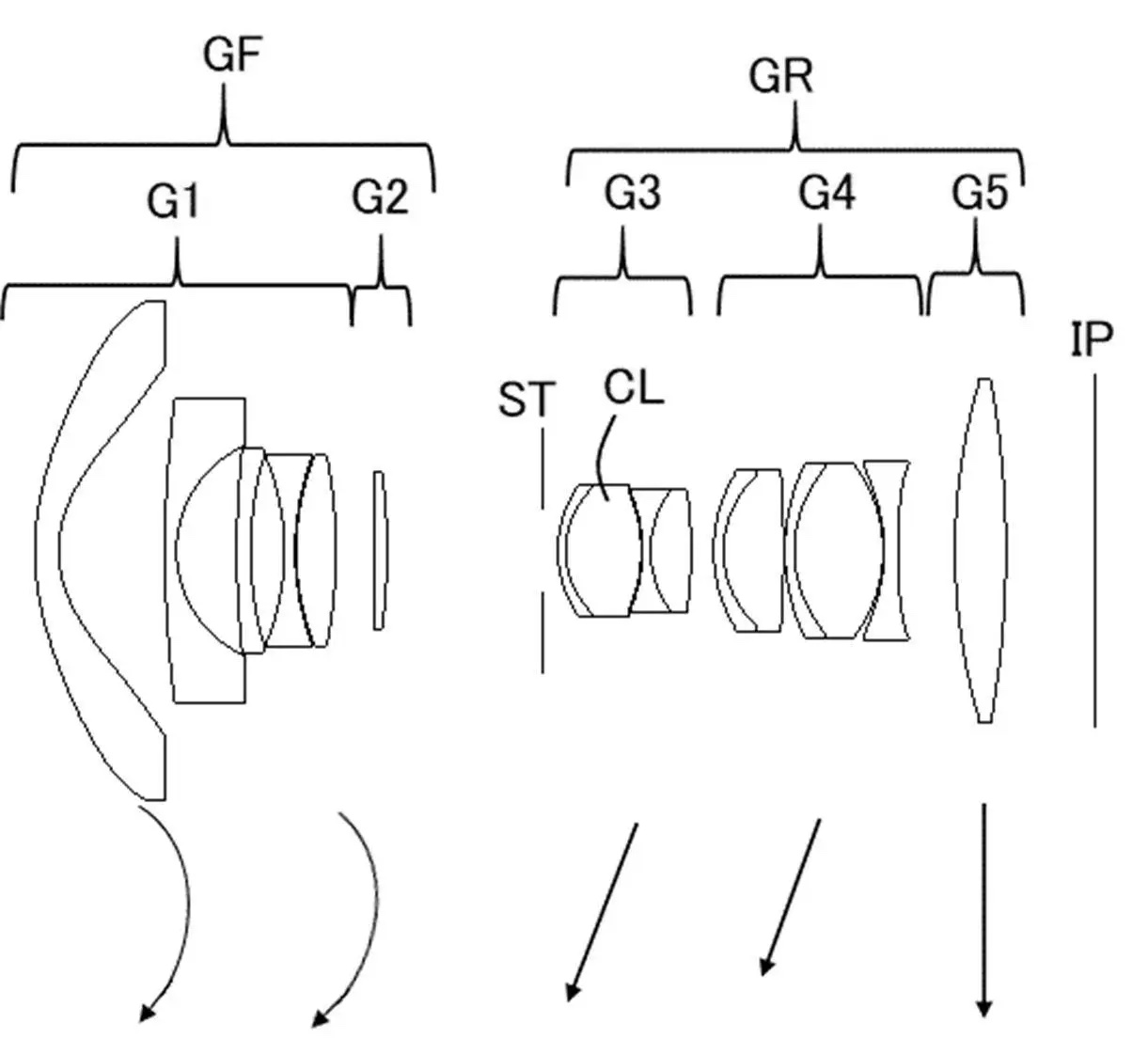

Example 1

• Focal length: 9.27-17.46
• F value: 4.12
• Half angle of view: 66.80-51.10
• Image height: 21.64
• Overall length: 130.07-127.77
• Back focus: 11.00
