Canon Patent: 35mm f/2.8, 85mm f/2.8, 130mm f/4 and 220mm f/4 Tilt-shift Lenses

May 30, 2022
Canon Patents
0 Comments

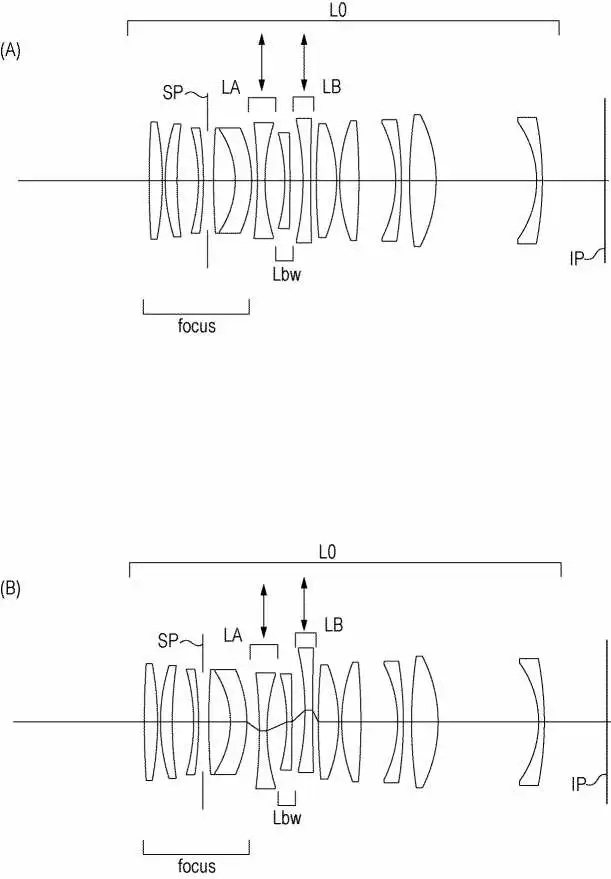

Drawing from the patent literature

A new Canon patent for tilt-shift lenses with reduced composition shift.

A new Canon patent application discusses optical formulas and methods for tilt-shift lenses with reduced composition shift.

35mm f/2.8
85mm f/2.8
139mm f/4
220mm f/4

From the patent literature:

BACKGROUND ART There is a demand for an image pickup optical system capable of obtaining good focus on the entire surface of an object surface tilted in the optical axis direction of the image pickup optical system.
Such an imaging application is called tilt photography, and an imaging optical system provided with a tilt mechanism (tilt mechanism) is known as an optical system that satisfies this demand. The Scheimpflug principle is used as the principle of tilt photography, and this imaging optical system is also called a Scheimpflug optical system.
On the other hand, in an imaging optical system having a tilt mechanism, the composition shifts (hereinafter, also referred to as “composition shift”) at the time of tilting, which may impair convenience.
On the other hand, there is known an imaging optical system provided with a plurality of lens portions that move in a component in the direction perpendicular to the optical axis direction (Patent Document 1). Patent Document 1 describes a lens portion A that generates a tilt effect by moving to a component in the direction perpendicular to the optical axis direction, and a shift effect (composition shift) by moving to a component in the direction perpendicular to the optical axis direction. The lens portion B is provided.
In Patent Document 1, the lens unit A moves in the direction perpendicular to the optical axis direction during tilt photographing, and the lens unit B moves with respect to the optical axis direction so as to correct the shift effect generated in the lens unit A. By moving in the vertical direction, tilt shooting with a small composition shift is possible.
PROBLEM TO BE SOLVED: To solve an image pickup optical system provided with a plurality of lens portions moving in a direction perpendicular to the optical axis direction as in Patent Document 1, in which the lens portions are perpendicular to the optical axis direction during tilt shooting. Since it is moved in the direction, aberration due to optical eccentricity occurs. This aberration due to eccentricity increases in the amount of vertical movement as the amount of tilt of the object surface to be tilted increases. Therefore, in the image pickup optical system of Patent Document 1, the amount of inclination of the object surface at which good focus can be obtained by tilt photography is small.
An object of the present invention is to provide an optical system capable of obtaining a large tilt photographing effect while reducing composition shift, and an image pickup apparatus having the same.
